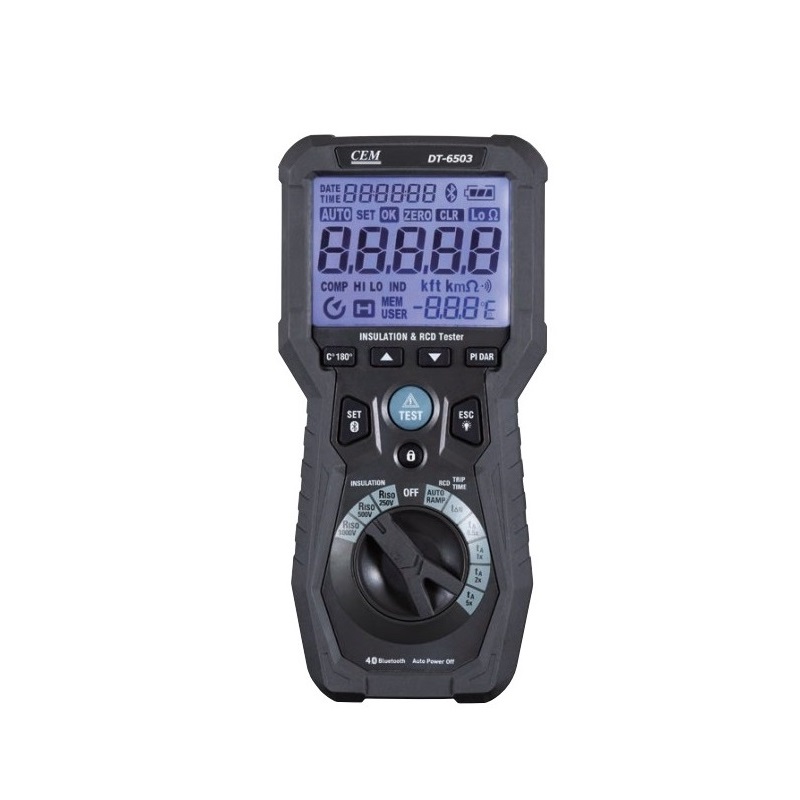

CEM DT-6503 Insulation and RCD Tester (0.25~5000MΩ)

Insulation Tester

Terminal Voltage: Range / Max Resolution / Accuracy / Test Current

250V(0%~10%): 0.250~5000MΩ / 0.001MΩ / ±(2%+10) / 1mA @load250kΩ

500V(0%~10%): 0.500~5000MΩ / 0.001MΩ / ±(2%+10) / 1mA @load250kΩ

1000V(0%~0%): 1.000~5000MΩ / 0.001MΩ / ±(2%+10) / 1mA @load250kΩ

RCD Tester

Range: Rated residual current

x5: 15/30/50/100mA

x2: 15/30/50/100/200mA

x1: 15/30/50/100/200/500mA

x0.5: 15/30/50/100/200/500mA

Rated voltage: 100V±10%; 200V+32%/-10%; 400V±10%; 50/60Hz

Accuracy: ±(1%+3dgt)+2%~+8%

Test curent (Test time): 0~2000ms

Residual current (mA) Rated residual current / Accuracy / Test curent:15/30/50/100/200/500mA / -4%~+4% / 40%~300% of rated residual current

Voltage Tester

Range: 80~450V; 50/60Hz

Accuracy: ±(2%rdg+4dgt)

SIze (HxWxD): 97mm x 210mm x 68mm

Weight: 634g

Accessories: Test lead, 6 x1.5V "AA" batteries, Type K temperature probe and Software, giftbox with carrying case
