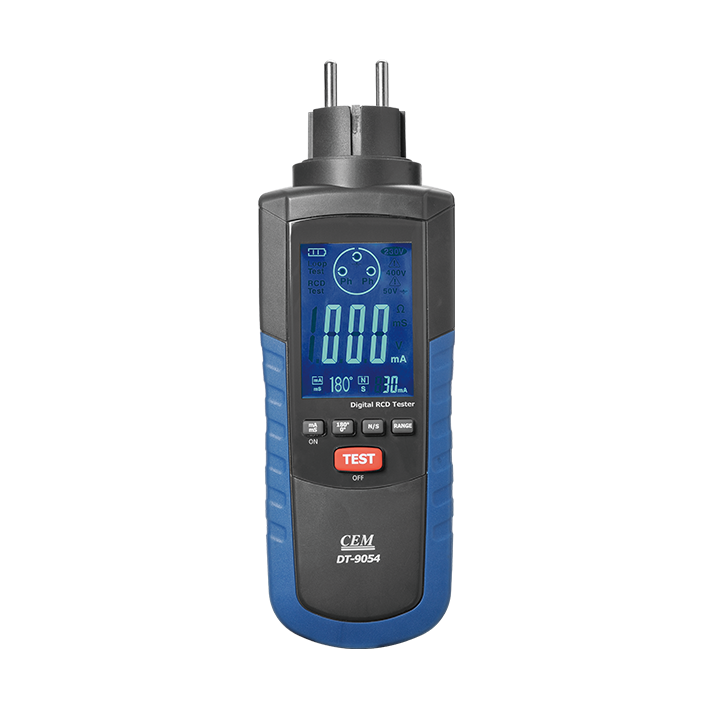

CEM DT-9054 RCD Tester (650mA)
Manufacturer: CEM Model: DT-9054 Origin: China Guarantee: 12 Month Price (exclude VAT) USD 112.90 Price (include VAT) USD 124.19 Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222)730.39.68
HCM city: (028) 38.119.636
Operational voltage: 195V - 253V /45 - 65Hz
Trip current settings: 10mA, 30mA, 100mA, 300mA, 500mA, 650mA
Trip current measurement accuracy: ±10% ±2digits
Trip time ranges: 0ms – 300ms
Trip time accuracy: ±5% ±3digits
Ramp test: x0.4 to 1.1 times nominal rated current, accuracy±10 %
Size(HxWxD): 200mm x 70mm x 45mm
Weight: 253g
Accessories: Test leads, 4 x “AA” batteries and Clamshell.
Details
Datasheet
Features
Fully programmed operation
Accurate digital read out of tripping time and Current
450ms readout for testing latest delay action breakers
Two LED lamps give quick check for correct wiring
Compact, lightweight and simple to operate
Zero cross circuitry permits testing at 0° and 180° portion of sine wave
