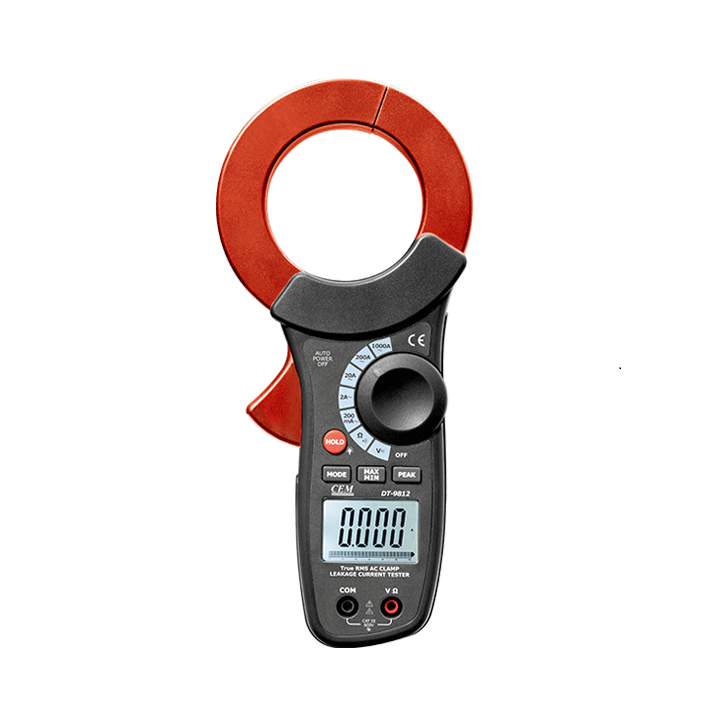

CEM DT-9812 AC Leakage Current Tester (AC-1000A, AC/DC-600V, True RMS)

Manufacturer: CEM
Model: DT-9812
Origin: China
Guarantee: 12 Month
Contact
- Request a Quotation
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222)730.39.68
HCM city: (028) 38.119.636

Function: Range - Range - Accuracy(50/60Hz) - Accuracy(40~1kHz)

AC Current

200mA ; 0.1mA ; ±(1.5%+10d) ; ±(3.0%+10d)

2A ; 1mA ; ±(1.5%+10d) ; ±(3.0%+10d)

20A ; 10mA ; ±(1.5%+10d) ; ±(3.0%+10d)

200A ; 100mA ; ±(2.0%+10d) ; ±(3.5%+10d)

1000A ; 1A ; ±(5.5%+10d) ; ±(10%+10d)

AC Voltage: 600V ; 0.1V ; ±(1.0%+5d) ;

DC Voltage: 600V ; 0.1V ; ±(1.0%+5d) ;

Resistance: 600Ω ; 0.1Ω ; ±(1.0%+5d) ;

Continuity Test: Threshold 40Ω, Continuity Beeper 2KHz

Conductor size: Φ68mm max.

Frequency response: 40Hz-1kHz

Effect of external stray magnetic ﬁeld Φ15mm 100A: 10mA AC max.

Applicable standards: IEC 61010-1 CAT.Ш 600V IEC 61010-2-032

Size (H x W x D): 250mm x 113mm x 45mm

Weight: 490g

Accessories: Gift box with carrying case and 9V battery, Test leads.

Details

Datasheet

Features

Large tranceformer jaws of 68mm diameter makes it possible to clamp on all three or four wires (3 phases) together for leakage current measurement.

Frequency filter switch to eliminate the effect of the harmonics.

Measurement from mA up to AC 1000A

True RMS enables an accurate measurement for distorted waveforms.

Peak hold function

Data hold function: Allows for easy reading in dimly light or hard-to-reach locations

Large LCD display with backlight

International safety standard IEC61010-1 CAT.III 600V
