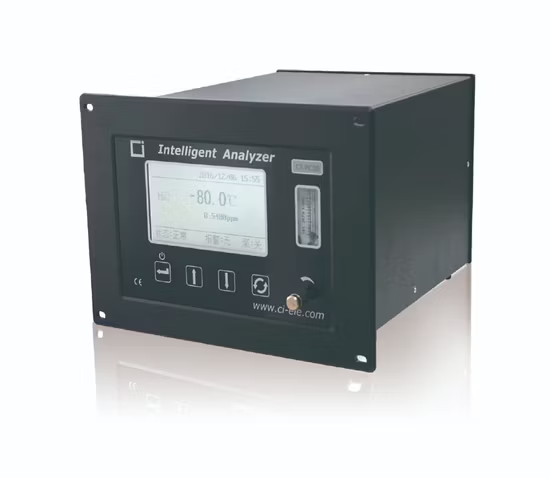

Sensor: ultra-thin alumina capacitive sensor
Measure range: -60°C~+20°C
Accuracy: ±3°C(-80~-60°C); ±2°C(-60~+20°C)
Repeatability: ±0.5°C
Zero drift: ±1%FS/7d
Range drift: ±1%FS/7d
Response time: At the temperature of +20°C and pressure of 1bar, the range reaches 63%[90%]
-60→-20°C Td 5s[10s]
-20→-60°C Td 45s[10min]
Power supply: 85~264VAC,50/60Hz
Analyzer power consumption: <35VA
Communication: RS485(standard)/ RS232(optional)
Alarm output: 1set; Relay contact point capacity:24V DC,0.2A
Analog output: 1 set,4-20mA/0-20mA/0-1V/0-5V/0-10V/ 1-5V (You can set the mode freely). The load:less than 500Ω
External control: quantity:1 set ; control signals:9~28VDC; purpose:can be used to control the pump switch (optional)
Environment temperature: 0~+45°C Environment Humidity:<80%RH
Sample gas pressure: atmospheric conditions±10% (Gas outlet should be atmospheric conditions)
Case size: L×W×H=310mm×275mm×190mm
Installation size: L×W=225mm×180mm(Rectangular hole)
Fixed hole size: L×W=252mm×170mm(Φ6×4 Bolt hole)
