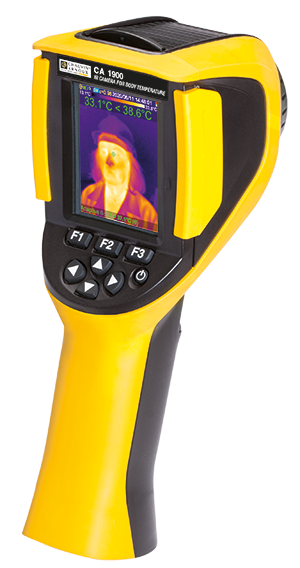

C.A 190
IR detector
Type: UFPA microbolometer
Spectral range: 8~14µm
Resolution: 120 x 160
IR imaging performance
Fluctuation of the measurement in adaptive mode: < 20 mK at 30°C
NETD * < 60 mK at 30°C
Frequency: 9 Hz
Objective: 28° x 38 (typical)°
IFOV (spatial resolution): 4.1 mrad
Min. focal distance: 0.3 m
Focusing
Adjustment: Fixed focus
Visible image
Built-in digital video: 480 x 640
Illuminator: no
Min. focal distance: 0.05 m
Presentation of the images
Images displayed: Infrared image, visible image
Video output: no
LCD screen: 2.8 " 240 x 320
Display of the images: Pseudo-colours, multiple palettes
Functions
Freezing of image Moving or frozen image
Storage of files Micro SD and SD HC card
Measurement of the skin temperature
Temperature range: 30 to 45°C
Accuracy: ±0.5°C
Battery system Type Ni-MH, low self-discharge - 1.2 V, 2500
Environmental specification
Temperature range of operation for other
than body measurements: -15 to +50°C (-4 to +122°F)
Temperature range, storage: -40 to +70°C (-40 to +158°F)
Humidity: 10 to 95 %
Altitude: < 2000 m and 10000 m in storage
Pollution degree: 2
For use indoors and outdoors.
Mechanical characteristics
Mass Approximately: 720 g with batteries
Dimensions: 225 x 125 x 83 mm
Drop resistance: 2 m on all sides
Impact resistance: 25G
Vibration resistance: 2G
Protection: IP54
Standard delivery
The CA 1900 camera is delivered in a site-proof case
with 4 NiMH batteries and battery charger,
1 micro SD HD card,
1 USB cable,
1 Bluetooth earpiece,
1 test report,
1 quick start guide
Optional
Mains adapter P01651533
