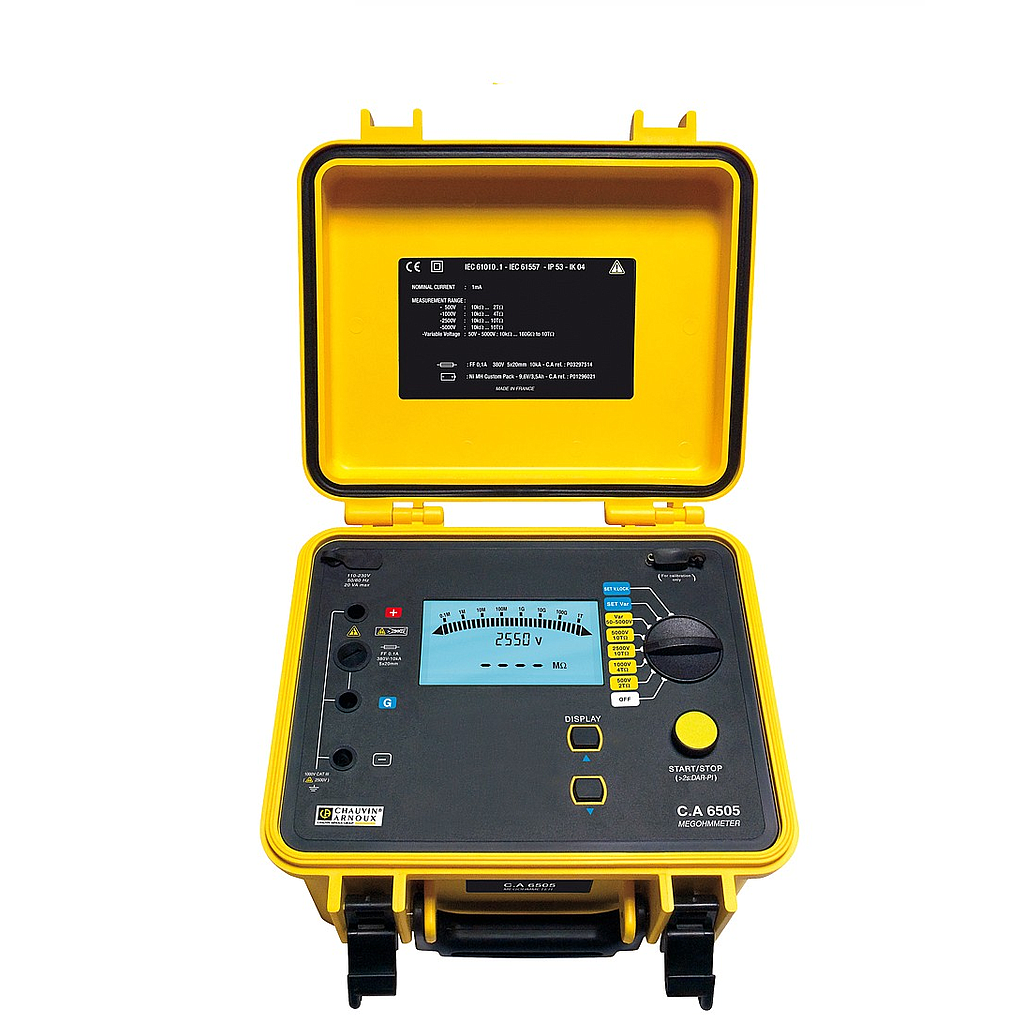

Chauvin Arnoux C.A 6505 Insulation testers (5.1KV)

- Saving of measurements Rechargeable battery
- Voltage: 1 to 5,100 VAC/DC
- Insulation: 500/1,000/ 2,500 / 5,000 VDC+ variable from 50 V to 5,100 VDC(10 or 100 V increments)
- Range : 10 kΩ to 10 TΩ
- Capacitance: 0.001 to 49.99 μF
- Current: 0.001 nA to 3,000 μA
- Alarms: yes
- Smoothed display: no
- Chronometer: yes
- Prog. test time: yes
- Quality ratios: DAR / PI
- R(t): no
- Communication: no
- Power supply: NiMH rechargeable battery
- Safety: IEC 61010-1 Cat. III 1000 V (Cat. I, 2,500 V)- IEC 61557
- Display: Large graphical LCD
- Backlighting: yes
- Dimensions: 270 x 250 x 180 mm
- Weight: 4.3 kg
- PC software: no

State at delivery: carrying bag containing: 3 HV leads 3 m long with large crocodile clips (including one shielded), 1 lead with rear connection (35 cm) + 1 power cable
