SENDER CA 6683E
Display Backlit graphic: LCD display
Information displayed: Measured voltage level, polarity (AC or DC), transmitted signal power, battery status, identification code, high voltage presence.
External voltage identification range: 12 V, 50 V, 120 V, 230 V and 40 V 50/60 Hz or DC ± 2.5 %
Output signal frequency: 125 kHz
Signal power: Adjustable (3 levels)
Transmitter identification: Digital signal coding allowing the use of 7 transmitters simultaneously
Power supply: 6 x 1.5 V LR03/AAA batteries
Security: Compliant with IEC 61010 300 V CAT III
Operating/storage temperature: 0 to 40°C/-20 to +60°C
Dimensions/Weight: Approx. 160 x 84 x 40 mm / 350 g
CA 6683R RECEIVER
Screen Backlit graphic: LCD display
Information displayed: Signal amplitude (digital value + graduated scale), detection sensitivity, transmitter identification code and transmitted signal strength, battery status, high voltage presence.
Detection distance with transmitter
- in unipolar mode: 2 m typical
- in bipolar mode: 0.5 m typical
- single loopback line: up to 2.5 m
Detection sensitivity: Automatic or manual adjustment (7 levels)
Non-contact voltage detection (NCV): 12 V to 1000 Vac at 50/60 Hz, voltage referenced to earth
Other functions: Torch; audible signal deactivation
Power supply: 6 x 1.5 V LR03/AAA batteries
Safety: Type F probe compliant with IEC 61010-031 300 V CAT III
Operating / storage temperature: 0 to 40°C/-20 to +60°C
Dimensions/Weight: Approx. 198 x 67 x 36 mm / 310 g

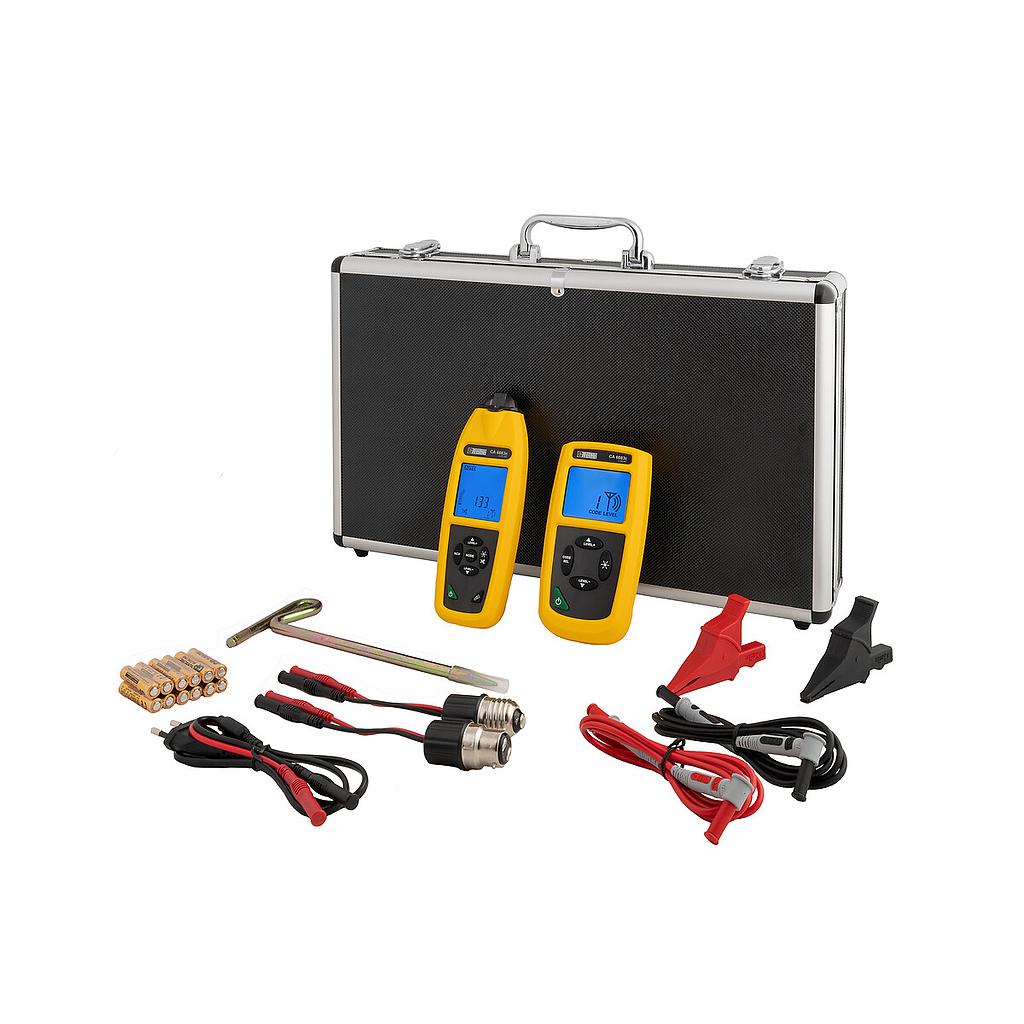

1 CA6683E transmitter and 1 CA6683R receiver supplied in a case with:
• 1 set of 2 crocodile clips
• 1 T-shaped earth stake
• 1 set of 3 adapters: P/N mains plug, B22 bayonet socket and E27 screw socket
• 2 sets of 6 1.5 V LR03/AAA alkaline batteries
• 1 user manual in 5 languages
