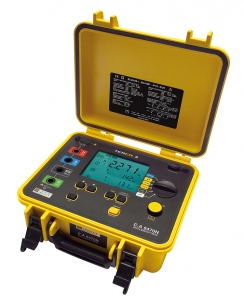

Chauvin Arnoux C.A 6471 Earth and resistivity testers (4 Pole)

Specifications:
- 3P Method:
+ Range: 0.01Ω to 99.99 kΩ
+ Resolution: 0.01 to 100 Ω
+ Measurement frequency: 41 to 513 Hz
+ Coupling measurement: yes
- 4P Method:
+ Range: 0.001 Ω to 99.99 kΩ
+ Resolution: 0.001 to 100 Ω
- Earth measurement with 2 clamps
+ 4P Selective: yes
+ Range: 0.01 to 500 Ω
+ Resolution: 0.01 to 1 Ω
+ Measurement frequency: Auto: 1367 Hz. Manual: 128 Hz, 1367 Hz, 1611 Hz, 1758 Hz
- Resistivity:
+ Test method: Wenner and Schlumberger with automatic calculation
+ Range: 0.01 to 99.9 kΩ
+ Measurement frequency: 41 to 128 Hz
- DC resistance measurement:
+ Type of measurement: 2 or 4 wires
+ Range: 0.001 Ω to 99.9 kΩ
+ Measurement current: >200mA DC
- Storage: 512 memory locations
- Communication: Optically-isolated USB
- Dimensions / weight: 272 x 250 x 128 mm / 3 kg / 3.2 kg
- Safety: 50V CAT IV, IEC 61010 & IEC 61557

State at delivery: delivered with 1 external mains charger, data export software + optical / USB communication lead, 2 C182 clamps with 2 safety leads, 5 operating manuals (one per language) on CD-ROM, 5 simplified operating manuals, each in a different language, 5 descriptive labels, each in a different language, 1 carrying bag.

Accessories (optional):
-MN82 clamp (diam. 20mm) (delivered with 1 x 2m cable for ES terminal connection) (P01120452)
- C182 clamp (diam. 20mm) (delivered with 1 x 2m cable for ES terminal connection) (P01120333)
- Dataview report generation software(P01102095)
- Adapter for recharging on vehicle cigarette lighter (P01102036)
- Optical / RS communication cable (P01295252)
- GB mains power cable (P01295253)
- Set of 10 fuses - F 0.63 A – 250 V – 5x20 mm – 1.5 kA (AT0094)
- Adapter for charging battery from the mains (P01102035)
- Battery pack (P01296021)
- Optical / USB communication cable (HX0056-Z)
