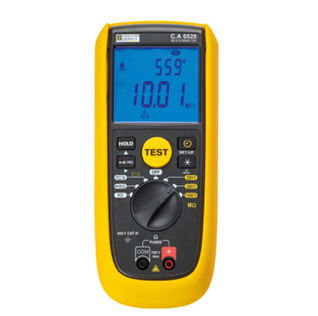

Chauvin Arnoux C.A 6528 Insulation and Continuity Tester (1‐700V, 11 GΩ)

Name: Chauvin Arnoux C.A 6528 Insulation and Continuity Tester (1‐700V, 11 GΩ)
Brand: Chauvin Arnoux
Price: 682.08 USD
Availability: OutOfStock

ManufacturerChauvin Arnoux

ModelC.A 6528

P/NP01140838

OriginFrance

Warranty12 months

USD 682.08

Quantity

Secure Checkout

Quality Engagement

Easy change and return

Delivery Available

Industrial maintenance

Voltage

Measurement range/ resolution: 1‐700 V / 1 V

Accuracy / input impedance: ±1.2% R ± 1ct for AC+DC; ±1 R ± 1ct for DC / 25 MΩ

Operating frequency :DC; 30‐440 Hz

Insulation

Test voltage: 250-500-1,000 V

Range at maximum test voltage: 11 GΩ

Compliance with the IEC 61557‐2standard: 2 GΩ

Measurement range:

250 V 50 kΩ ‐ 4.2 GΩ

500 V 100 kΩ ‐ 4.2 GΩ

1 000 V 200 kΩ ‐ 11 GΩ

Measurement range / resolution: 50 kΩ ‐ 3.999 / 1 kΩ; (0.2)* 3.6‐39.99 MΩ / 10 kΩ; 36‐399.9 MΩ / 100 kΩ; 360‐4,200 MΩ / 1 MΩ; (1 kV) 3.6 ‐ 11.00 GΩ / 10 MΩ

Accuracy: 0.05‐399.9 MΩ : ±1.5 R ± 10cts; 360 ‐4,200 MΩ: ±4 R ± 10cts ; ±4 R ± 5cts (at 1,000 V); 3.6‐11 GΩ: ±10 R ± 10cts

Test voltage (I <1 mA): 0%+20%

Timer (min:s): 10s to 39min 59s

Alarms: 1 threshold / test voltage

Continuity

Measurement range: 0.02 Ω ‐ 40 Ω (200 mA)

Accuracy / open-circuit voltage: ±1.2% R ±3cts / 6 VDC < U < 9 VDC

Measurement current :≥ 200 mA (up to 2 Ω)

Continuity threshold (fast beep): 2 Ω / 1 Ω

Cable compensation: up to 5 Ω

Resistance

Measurement range / resolution: 1 ‐399.9 Ω / 0.1 Ω; 360‐3,999 Ω / 1 Ω; 3.60‐39.99 kΩ / 10 Ω; 36.0‐420.0 kΩ / 100 Ω
