-Current tests
+Measurement range via current sensor : 500 mA to 300 A (2 calibres)
+Resolution: 0.01 A to 0.1 A
- DC voltage
+Measurement range: 3 mV to 1,000 V – 4 calibres
+Resolution: 1 mV to 1 V
- AC voltage
+Measurement range: 100 mV to 1,000 V – 4 calibres
+Resolution: 1 mV to 1 V
- Operating frequency: DC and 50/60 Hz
- Impedance: 10 MΩ
- No-contact voltage detection: With 230 V 50/60 Hz at a distance of approx. 5 cm
- Audible continuity test: R ≤ 30 Ω
- Resistance test
+Measurement range: 0.3 Ω to 30 MΩ– 6 calibres
+Resolution: 0.1 Ω to 0.01 MΩ
- Capacitance tests
+Measurement range: 400 pF to 30 mF
+Resolution: 0.001 nF to 0.01 mF
- Standards: 600 V CAT III, IEC 61010-1, IEC 61010-031, IEC 61010-032, IEC 61010-033
- Power supply: 2 x 1.5 V LR03 batteries
- Battery life: 100 hours with alkaline batteries. Automatic standby mode after 10 minutes
- Dimensions / weight: 180 x 52 x 45 mm / 200 g
State at delivery: delivered with a soft case, 1 set of extra-fine test probes CAT III/CAT IV (red/black), 2 x 1.5 V AAA / LR3 alkaline batteries,1 MiniFlex® sensor with a loop length of 250 mm, a connection cable 1 m long and a specific connector for C.A 757, 1 Velcro strap
Accessories & Replacement Parts:
- 1 set of black/red CAT III/IV test probes P01102152Z
- 1 set of black/red Ø 2 mm test probes, CAT II P01102153Z
- 1 set of black/red Ø 4 mm test probes, CAT II P01102154Z
- C.A 753 adapter for 2P+E sockets P01191748Z
- Velcro strap x 5 P01102113
- 1.5 V LR3/AAA alkaline battery (x 1) P01296032
- Bag compatible with MultiFix accessory, 120 x 200 x 60 P01298074
- MultiFix mounting accessory P01102100Z
- MA101-250 current sensor for C.A 757 P01120591
datasheet
user guider
catalog vietnamese
catalog english
The compact, lightweight C.A 757 tester is a test and measurement instrument offering all the essential functions required by electricians on a day-to-day basis.
The compact C.A 757 fits comfortably in one hand and is equipped with an IP 54 casing protected against dust and water projections which also withstands fall from up to 2 metres. Its large backlit display makes it easy to read the values. The test probes are removable and easy to replace. They are stowed with their cable in a built-in compartment on the instrument.
Ergonomic and quick to prove essential for test and maintenance work, the C.A 757 also ensures that you work in total safety:
- protection against electric shocks up to 6 kV for voltage measurements
- protection up to 1,000 V for all the functions
- indication when a hazardous voltage is present
- automatic power-off after 10 minutes.
With its 600 V CAT III double insulation, the C.A 757 complies with the new IEC 61010-2-033 standard for multimeters.
Simple to use, the C.A 757 automatically recognizes Ac and DC voltages, as well as continuity, resistors, diodes and capacitors. It also detects live conductors without contact.

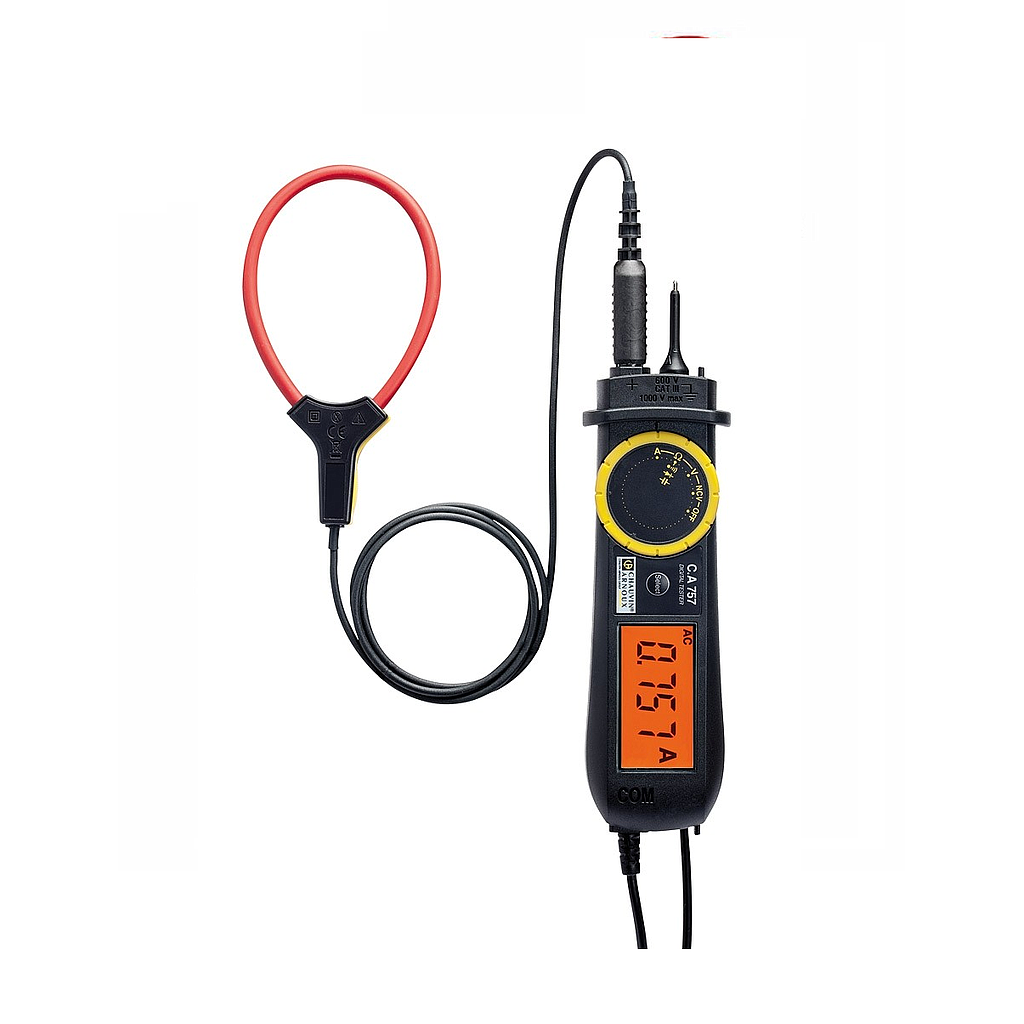

Lastly, the C.A 757 is delivered with a MiniFlex flexible current sensor allowing current measurements up to 300 AAC even in places where access is difficult.
Main specifications:
• DC voltage: 3 mVDC to 1000 VDC
• AC voltage: 100 mVAC to 1000 VAC
• Currents: 500 mA to 300 A (with MiniFlex sensor supplied)
• Resistance: 0.3 Ω to 30 MΩ
• Audible continuity for R ≤ 30 Ω
• Capacitance: 400 pF to 30 mF
• Diode test
• No-contact voltage detection
• 600 V CAT III
