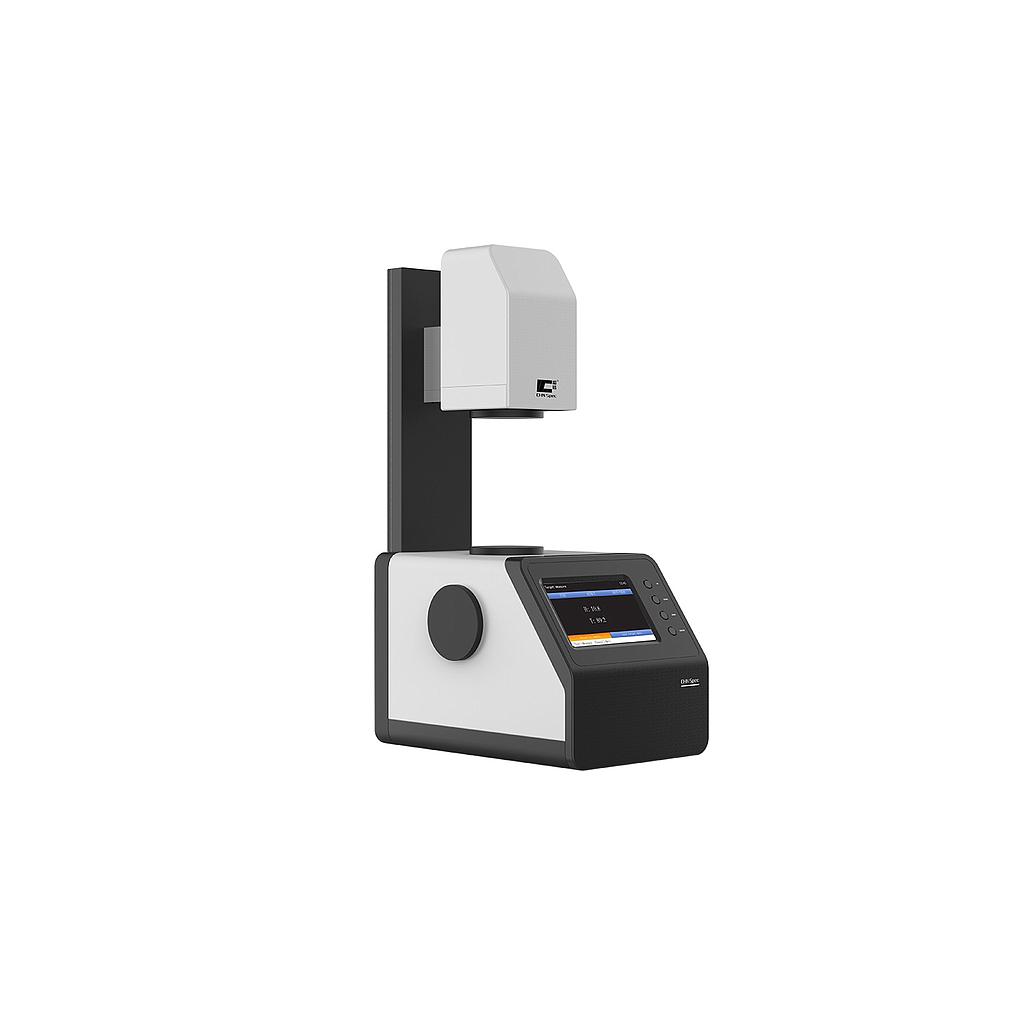

CHN SPEC TH-110 Haze Meter (0-100%, 0.01)

Character: ASTM standard for haze measurement （ASTM D1003/D1044，ISO13468/ISO14782） and light transmittance measurement.Open measurement area can be tested vertically and horizontally. Application: for glass, plastic , film, display screen, packaging and other industries.

Illuminants: D65,A,C

Standards: ASTM D1003/D1044，ISO13468/ISO14782，GB/T 2410,JJF 1303-2011，CIE 15.2，GB/T 3978,ASTM E308，JIS K7105，JIS K7361，JIS K 7136

Test Parameter: ASTM and ISO (HAZE),Transmittance (T)

Test Aperture: 21mm, 7mm

Instrument Screen: 7 inches touch screen with Android Software

Haze Repeatability: Φ21mm aperture，Standard Deviation: within 0.05(when a haze standard with value 40 is measured 30 times at 5-second interval after calibration)

Transmittance Repeatability: ≤0.1 unit

Geometry: Transmittance 0/D (0 degree illumination, diffused receiving)

Integrating Sphere Size: Φ154mm

Light Source: 400~700nm full spectrum LED light source

Test Range: 0-100%

Haze Resolution: 0.01 unit

Transmittance Resolution: 0.01 unit

Sample Size: Open space, no size limit

Data Storage: 10,000 pcs of samples

Interface: USB

Power Supply: DC12V (110-240V)

Working Temperature: +10 – 40 °C (+50 – 104 °F)

Storage Temperature: 0 – 50 °C (+32 – 122 °F)

Size: LXWXH 310mmX215mmX540mm
