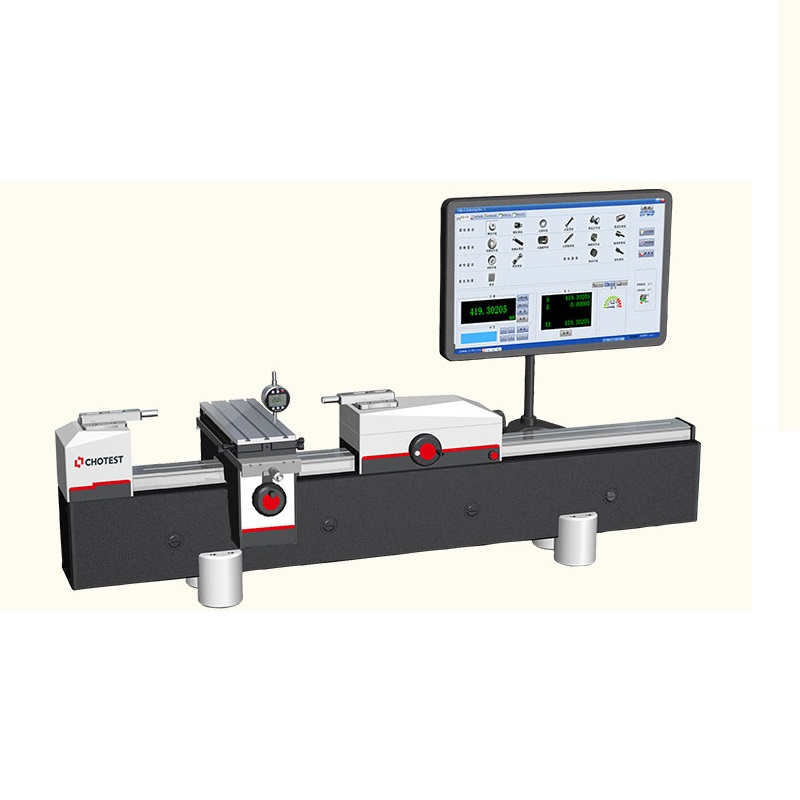

Chotest SJ5100-1000A Universal length measuring machine (0.7~900mm; 0~1040mm; 0.01μm)
Manufacturer: Chotest Model: SJ5100-1000A - Contact
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222)730.39.68
HCM city: (028) 38.119.636
Inside measuring range: 0.7~900mm
Outside measuring range: 0~1040mm
Indication error: ±(0.12+L/1000)μm
Resolution: 0.01μm
Repeatability (2s): 0.08μm
Max thread pitch: 200mm(Ring gauge) / 250mm(Plug gauge)
Measuring force range: 0.1N, 0.3N, 0.5N, (1~10N) continuously adjustable by hand
Dimension(mm): 1700×400×450
Weight(kg): 180
