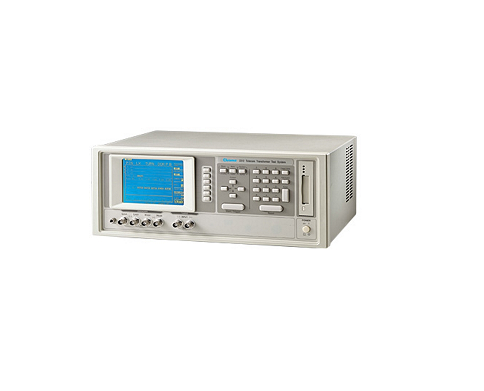

Chroma 3302 Transformer Test System / Component Analyzer

Name: Chroma 3302 Transformer Test System / Component Analyzer
Brand: CHROMA

Model3302

Contact

Quantity

Secure Checkout

Quality Engagement

Easy change and return

Delivery Available

Test frequency: 20Hz~200kHz/1MHz, 0.02% accuracy
Basic accuracy: 0.1%
Different output impedance modes, measurement results are compatible with other well-known LCR meters
Enhanced Turn Ratio measurement accuracy for low permeability core
Fast Inductance/ Turn Ratio measurement speed up to 80 meas./sec
Fast DCR measurement speed up to 50 meas./sec
Graphical and tabular display of swept frequency, voltage current and bias current measurements (3252/3302)
Build-in 8mA bias for RJ45 transmission transformer saturation condition (option)
Leakage inductance 100 bin sorting and balance of leakage inductance for TV inverter transformer
ALC (Auto Level Compensation) function for MLCC measurement (3252/3302)
Test fixture residual capacitance compensation for transformer inductance measurement
1320 Bias Current Source directly control capability (3252/3302)
320x240 dot-matrix LCD display
Support versatile standard and custom-design test jigs
Four-terminal test for accurate, stable DCR, inductance and turn ratio measurements
Built-in comparator; 10 bin sorting with counter capability (3252/3302)
Lk standard value with Lx measure value
4M SRAM memory card, for setup back-up between units
Standard RS-232, Handler, and Printer Interface, option GPIB Interface for LCR function only
15 internal instrument setups for store/recall capability
