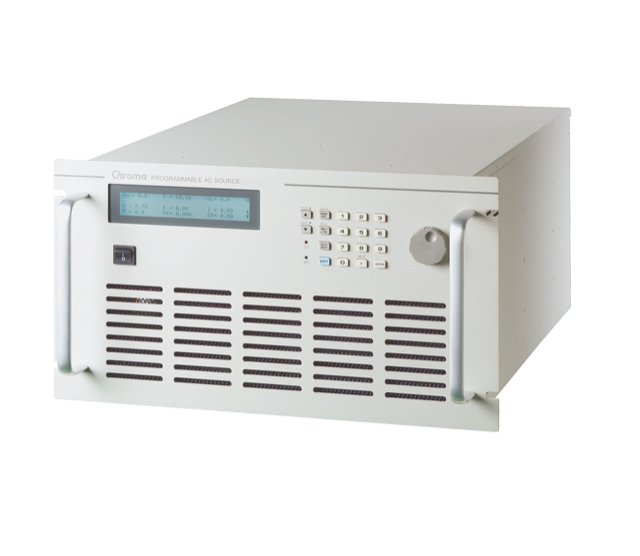

CHROMA 61507 Programmable AC Power Source (3kVA)

AC Output

Number of output phases: 1 phase or 3 phase

Max power: 3kVA

Power per phase: 1kVA

Voltage

Voltage range: 0~175V / 0~350V / Auto

Voltage range with 5kHz option

At 15Hz~3000Hz: 0~175V / 0~350V

At 3001Hz~5000Hz: 0~115V / 0~230V

Accuracy: 0.1% of RD + 0.2% of FS

Resolution: 0.1V

Distortion:

< 0.3% @50/60Hz

< 1% @15Hz ~ 500Hz

1% maximum to 500Hz, add 0.5%/kHz up 2kHz

Line regulation: 0.1%

Load regulation: 0.2%

Maximum Current (Single-phase mode)

RMS: 30A / 15A

Peak (CF=4): 120A / 60A

Maximum Current (Per phase in three-phase mode)

RMS: 10A / 5A

Peak (CF=4): 40A / 20A

Frequency

Frequency range: 15Hz~2000Hz

Frequency range with 5kHz option: 15Hz~5000Hz

Accuracy: 0.01%

DC Output (Single-phase mode)

Power: 3kW

Voltage: 247.5V / 495V

Current: 30A / 15A

DC Output (Three-phase mode)

Power: 1kW

Voltage: 247.5V / 495V

Current: 10A / 5A

Input Specifications

Voltage range: 3Ø 200-240V ±10% VLN (WYE); 3Ø 200-240V ±10% VLL (Delta)

Current (per phase): 15A Max./Phase (3Ø 200-240V ±10% VLL)

Power factor: 0.97 (Typical)

Measurement

Voltage

Voltage range: 0~175V / 0~350V / Auto

Voltage accuracy: 0.1% of RD + 0.2% of FS

Current

Current accuracy (RMS): 0.2% of RD + 0.2% of FS

Current accuracy (Peak): 0.2% of RD + 0.4% of FS

Power

Accuracy: 0.2% of RD + 0.4% of FS

Power Line Disturbance Simulation (PLD Simulation): LIST, PULSE, STEP functions.

Waveform Synthesis: Up to 50th order at 50/60Hz.

Harmonics Measurement: Voltage and current measurement up to the 50th order at 50/60Hz.

Programmable impedance: 0Ω + 0.2mH ~ 1Ω + 2mH

Efficiency: >80% (Typical)

Protection: OVP, OCP, OPP, OTP, FAN

Safety & EMC standards: CE mark

Dimensions (H x W x D): 221.5 x 425 x 680mm

Weight: 50 kg
