Measured value: Temperature, Relative humidity
Temperature sensor:
Measuring range: -30 to +105 °C
Accuracy: ±0.4 °C
Resolution: 0.1 °C
Humidity sensor:
Measuring range: 0 to 100 % RH
Accuracy: ±2.5 % RH from 5 to 95 % at 23 °C
Resolution: 0.1% RH
Dew point:
Measuring range: -60 to +80 °C
Accuracy: ±1.5 °C at ambient temperature T <25 °C and RH >30 %
Resolution: 0.1 °C
Measuring the moisture of compressed air:
Measuring range: up to 25 bars
Air flow velocity: up to 25 m/s at a pressure of 1 bar (1m/s at a pressure of 25 bar)
Relays output:
Quantity: 2
Maximal voltage: 50 V
Maximal current: 2 A
Maximal power: 60 VA
Operating temperature: -30 to +80 °C
Channels: 1x connectable temperature+humidity probe
Counted values: dew point, absolute humidity, specific humidity, mixing ratio, specific enthalpy
Acoustic alarm: from built-in beeper - switchable
Power: 9-30 Vdc
Protection class: IP65 electronics; IP40 sensors
Dimensions: 136 x 159 x 45 mm; length/diameter of external probe 88/18 mm
External probe cable length: 1 meter
Weight: approx. 400 g
Included in delivery:

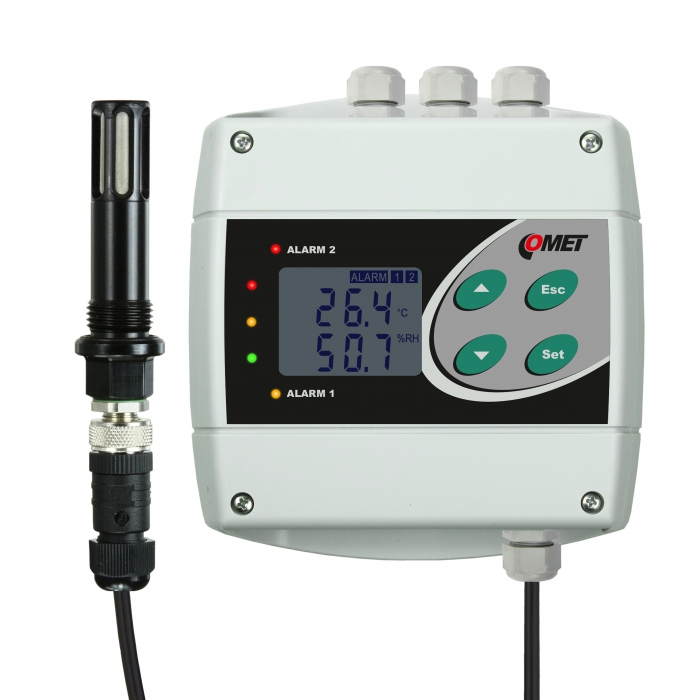

H3021P
Instruction Manual
Traceable Calibration Certificate
FREE software TSensor for Configuring of the Transmitter
