Measured value: Temperature, Relative humidity
Counted values (dew point…)
Temperature sensor:
Measuring range: -30 to +105 °C
Accuracy: ±0.4 °C
Resolution 0.1 °C
Humidity sensor:
Measuring range: 0 to 100 % RH
Accuracy: ±2.5 % RH from 5 to 95 % at 23 °C
Resolution: 0.1% RH
Dew point:
Measuring range: -60 to +80 °C
Accuracy: ±1.5°C for dew point temperature +10°C and higher at ambient temperature +25°C
±2.0°C for dew point temperature 0°C at ambient temperature +25°C
±3.0°C for dew point temperature -10°C at ambient temperature +25°C
±6.0°C for dew point temperature -20°C at ambient temperature +25°C
Resolution: 0.1 °C
Measuring the moisture of compressed air:
Measuring range: up to 25 bars
Air flow velocity: up to 25 m/s at a pressure of 1 bar (1m/s at a pressure of 25 bar)
Operating temperature: -30 to +80 °C
Channels: 1x connectable temperature+humidity probe
Counted values: dew point, absolute humidity, specific humidity, mixing ratio, specific enthalpy
Output: 0-10V
Range of humidity sensor temperature compensation: all temperature range
Available temperature units: degrees Celsius, degrees Fahrenheit
Communication protocol: ModBus RTU, ARION, Advantech ADAM
Power: 15-30 Vdc; 24 Vac
Protection class: IP65 electronics; IP40 sensors
Dimensions: 88.5 x 114 x 39.5 mm; length/diameter of external probe: 88/18 mm
External probe cable length: 1 meter
Weight: approx. 210 g
Included in delivery:

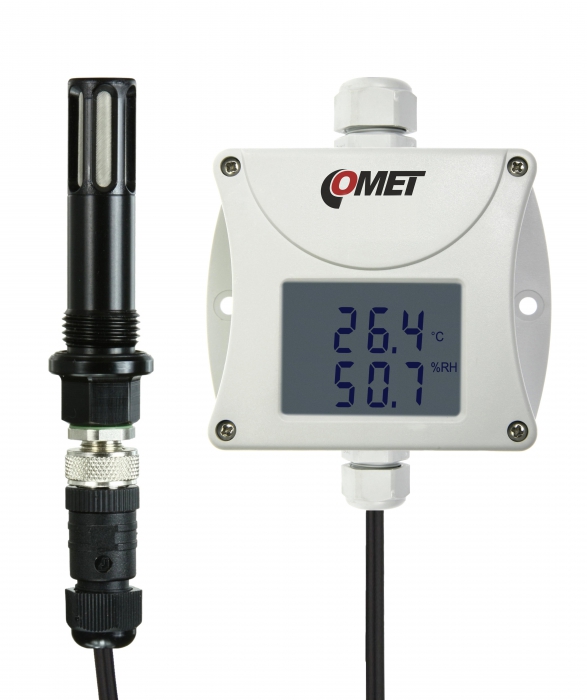

T0211P
Instruction Manual
Traceable Calibration Certificate
FREE software TSensor for Configuring of the Transmitter
