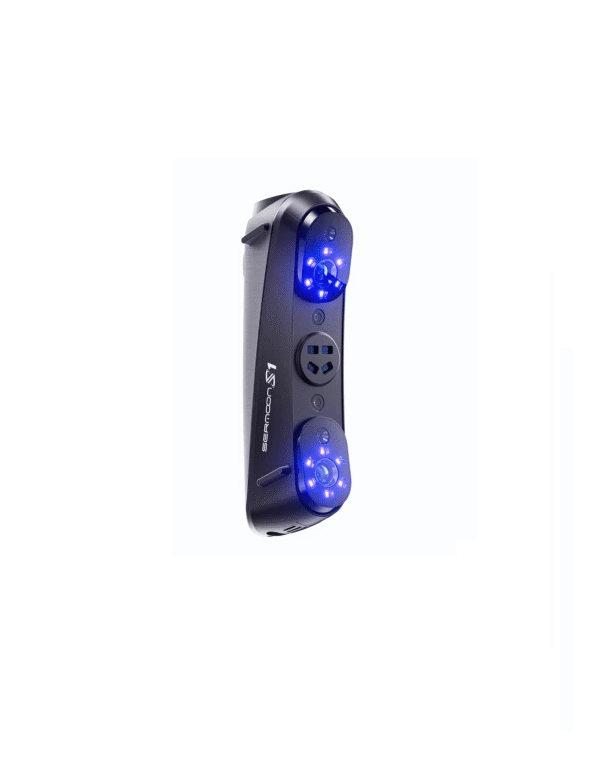

Creality Sermoon S1 3D Scanner

Scanning Mode

Single Blue Laser Line

7 Parallel Blue Laser Lines

34 Cross Blue Laser Lines

Close-Range Infrared Structured Light

Long-Range Infrared Structured Light

Accuracy

Single Blue Laser Line: Up to 0.02mm[1]

7 Parallel Blue Laser Lines: Up to 0.02mm[1]

34 Cross Blue Laser Lines: Up to 0.02mm[1]

Close-Range Infrared Structured Light: Up to 0.075mm

Long-Range Infrared Structured Light: Up to 0.075mm

Volumetric Accuracy

Single Blue Laser Line: 0.02mm+0.08mm/m

7 Parallel Blue Laser Lines: 0.02mm+0.08mm/m

34 Cross Blue Laser Lines: 0.02mm+0.08mm/m

Close-Range Infrared Structured Light: 0.075mm+0.1mm/m

Long-Range Infrared Structured Light: 0.075mm+0.1mm/m

Scanning rate

Single Blue Laser Line: 108,000 measurements/s

7 Parallel Blue Laser Lines: 756,000 measurements/s

34 Cross Blue Laser Lines: 1,428,000 measurements/s

Close-Range Infrared Structured Light: 4,600,000 measurements/s

Long-Range Infrared Structured Light: 4,600,000 measurements/s

3D Resolution

Single Blue Laser Line:0.05-2mm

7 Parallel Blue Laser Lines: 0.05-2mm

34 Cross Blue Laser Lines: 0.05-2mm

Close-Range Infrared Structured Light: 0.1-2mm

Long-Range Infrared Structured Light: 0.1-2mm

Scanning Speed

Single Blue Laser Line:Up to 90fps

7 Parallel Blue Laser Lines:Up to 90fps

34 Cross Blue Laser Lines: Up to 90fps

Close-Range Infrared Structured Light: Up to 30fps

Long-Range Infrared Structured Light: Up to 30fps

Min. scan volume

Single Blue Laser Line:5mm x 5mm x 5mm

7 Parallel Blue Laser Lines:5mm x 5mm x 5mm

34 Cross Blue Laser Lines: 5mm x 5mm x 5mm

Close-Range Infrared Structured Light:150mm x 150mm x 150mm

Long-Range Infrared Structured Light: 150mm x 150mm x 150mm

Single Capture Range

Single Blue Laser Line:

205mm x 147mm@200mm

293mm x 217mm@300mm

355mm x 289mm@400mm

417mm x 361mm@500mm

506mm x 433mm@600mm

7 Parallel Blue Laser Lines:

205mm x 147mm@200mm

293mm x 217mm@300mm

355mm x 289mm@400mm

417mm x 361mm@500mm

506mm x 433mm@600mm

34 Cross Blue Laser Lines:

205mm x 147mm@200mm

293mm x 217mm@300mm

355mm x 289mm@400mm

417mm x 361mm@500mm

506mm x 433mm@600mm

Close-Range Infrared Structured Light:

293mm x 217mm @300mm

417mm x 361mm @500mm

Long-Range Infrared Structured Light:

689mm x 375mm @500mm

1245mm x 754mm @1000mm

Working distance

Single Blue Laser Line:200mm-600mm

7 Parallel Blue Laser Lines: 150mm-400mm

34 Cross Blue Laser Lines: 200-600mm

Close-Range Infrared Structured Light: 170mm-500mm

Long-Range Infrared Structured Light: 200mm-1200mm

Device Weight: 508g

Size: 225mm×53mm×76mm

Calibration board: High-precision glass calibration board

Wireless Scanning: Supported in Conjunction with Wireless Scanning Accessories

System Support

Windows/macOS

Android/iOS (Requires Wireless Scanning Accessories)

Operating temperature: -10°C to 40°C

Operating humidity: 10-90%RH
