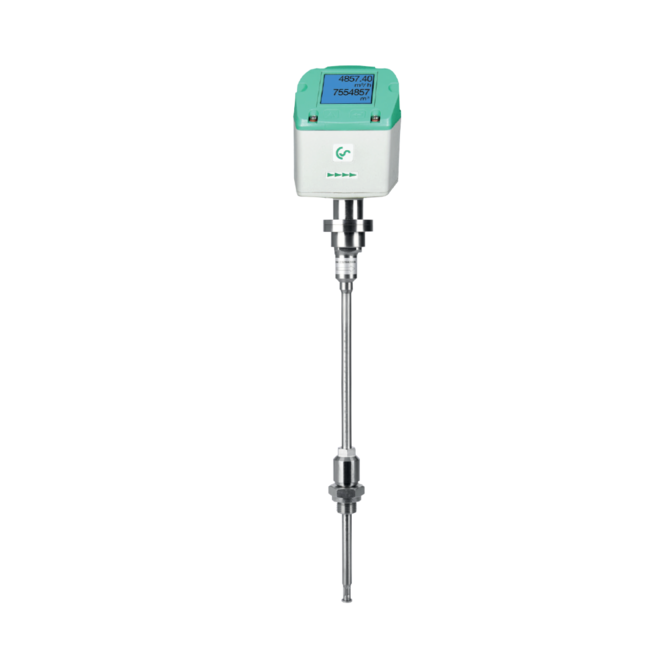

CS Instruments VD 500 Flow Sensor for Wet Compressed Air (600 m/s)
Manufacturer: CS Instruments Model: VD 500 P/N: 0690 5001 - Contact
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222)730.39.68
HCM city: (028) 38.119.636
Measuring range: up to 224 m/s / 600 m/s
Measured medium: Air, non-aggressive gases
Accuracy:(m.v.: of meas. value) (f.s.: of full scale): ± 1.5% of m.v. ± 0.3% of f.s.(20...224 m/s); ± 1.5% of m.v. (> 224 m/s)
Measuring principle: Differential pressure
Measuring span: 1:10
Response time: t 99: < 1 sec.
Temperature of the medium: -30 °…+180 °C
Operating pressure: Max. 20 bar
Ambient temperature: -30 °… +70 °C
Screw-in thread: G 1/2″, ISO 228
Power supply: 18…36 VDC, 5 W
Signal outputs: As standard: RS 485 (Modbus-RTU), 4…20 mA, pulse; Optional: Ethernet Interface (PoE), M-Bus
