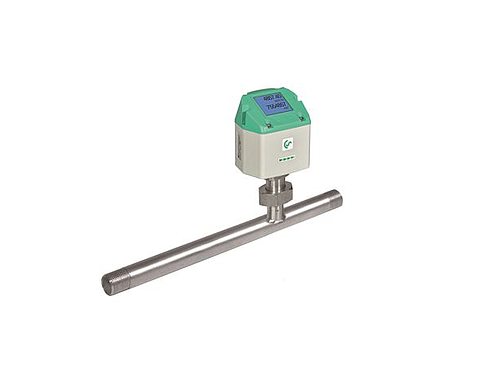

CS Instruments VA 520 Affordable Mass Flow Meter for Compressed Air and Gases
Manufacturer: CS Instruments Model: VA 520 Origin: Germany - Request a Quotation
- Contact
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222)730.39.68
HCM city: (028) 38.119.636
Measurement: Flow and consumption
Units can choose m³ / h, m / min, l / min, l / s, ft / min, cfm, m / s, kg / h
Sensor: Pt45, Pt1000
Measurement instruments: air, gas
Operating Temperature: -30 ... 100 ° C probe tube
-20 ... 70 ° C in the house
Operating pressure: up to 16 bar, special version PN 40 (40 bar)
Power supply: 18 to 36 VDC
Power consumption: up to 5W
Digital output: RS 485 (Modbus RTU)
Analog output: 4 ... 20 mA
Ability to adjust values with display keys
Accuracy: ± 1.5% m.v., ± 0.3% f. S.*
Display: TFT 1.8 Resolution 220 x 176
Material: Stainless steel 1.4301 / 1.4404
