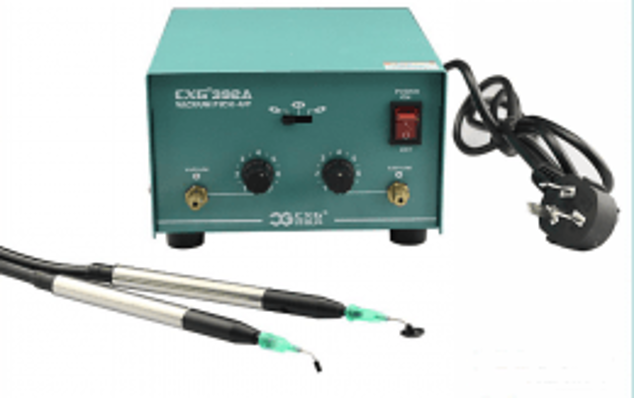

Power consumption: 10W
Pump: Diaphragm
Maximum vacuum pressure: 280 mmHg
Dimensions (mm):
Main unit: 136 (W) × 160 (D) × 83 (H)
Vacuum pen: 123 (L) × 10 (outer diameter)
Hose: 1200 (L) × 6 (outer diameter)
Weight:
Console: 1.65 kg
Vacuum pen: 25 g
Bending nozzle / Straight nozzle:
Inner diameter: 0.4 mm and 0.8 mm
Outer diameter: 3 mm and 10 mm
Pad:
Outer diameter: 5 mm and 7 mm (purchased separately)
Material: Conductive silicone
Strong suction, low noise, long service life; can work continuously for more than 1000 hours.
Can pick up flat integrated circuits, resistors, and various round, small, and other objects.
Built-in diaphragm vacuum pump; no need to connect to an external air system.
Strong suction, capable of handling objects weighing up to 120 g.
Anti-static design; suction pen, pads, and hose are made of anti-static materials, safer for sensitive components.
