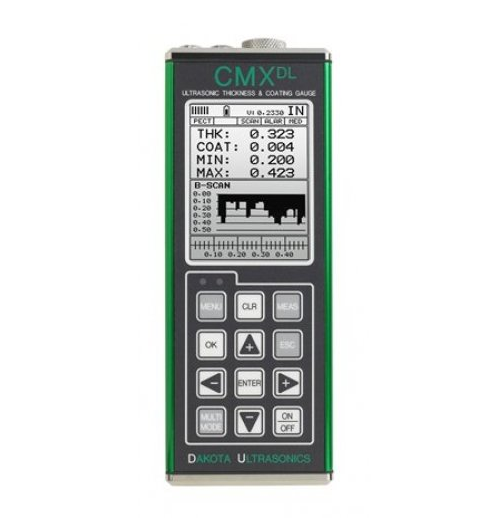

Dakota CMXDL Ultrasonic Thickness Gauge (6 Mode for Test)

Name: Dakota CMXDL Ultrasonic Thickness Gauge (6 Mode for Test)
Brand: Dakota

ManufacturerDakota(View more products from this manufacturer)

ModelCMXDL

Contact

Quantity

Secure Checkout

Quality Engagement

Easy change and return

Delivery Available

Measuring Range: 0.63 – 254mm

Stainless steel

MeasuringResolution : 0.001 inch (0.01 millimeter)

Units : Inches/Millimeters/Microseconds/metters-second

1 to 10 MHz frequency range.

Velocity Range: .0492 to .3937 in/m s. 1250 to 13,995 meters/sec

*Range: Pulse-Echo Mode (P-E): (Pit&Flaw Detection) measures from 0.025 19.999 inches (0.63 to 500 millimeters).

*Pulse-Echo Coating Mode (PECT): (Material, Coating, Pit & Flaw Detection): Material: 0.025 to 19.999 inches (0.63 to 500 millimeters). Coating: 0.001 to 0.100 inches (0.01 to 2.54 millimeters).

*Pulse-Echo Temp Comp Mode (PETP): (Pit&Flaw Detection) Auto temperature compensation – measures from 0.025 19.999 inches (0.63 to 500 millimeters).

*Echo-Echo Mode (E-E): Thru Paint & Coatings) measures from 0.100 to 4.0 inches (2.54 to 102millimeters). Range will vary +/- depending on the coating.

*Echo-Echo Mode (E-EV): Thru Paint & Coatings) measures from 0.050 to 1.0 inches (1.27 to 25.4 millimeters). Will vary based on coating.

*Coating Only Mode (CT): (Coating Thickness) Measures from 0.0005 to 0.100 inches (0.0127 to 2.54 millimeters). Range will vary +/- depending on the coating.

RS232 conect to PC and PC Software

Size: 2.5 W x 6.5 H x 1.24 D inches (63.5 W x 165 H x 31.5 D mm).

Weight: 13,5 ounces

Operating Temperature: -20 to 120F (-10 to 60C

Two 1.5V alkaline or 1.2V NiCad AA cells.

Typically operates for 150 hours on alkaline and 100 hours on NiCad.

Logger 21000 data
