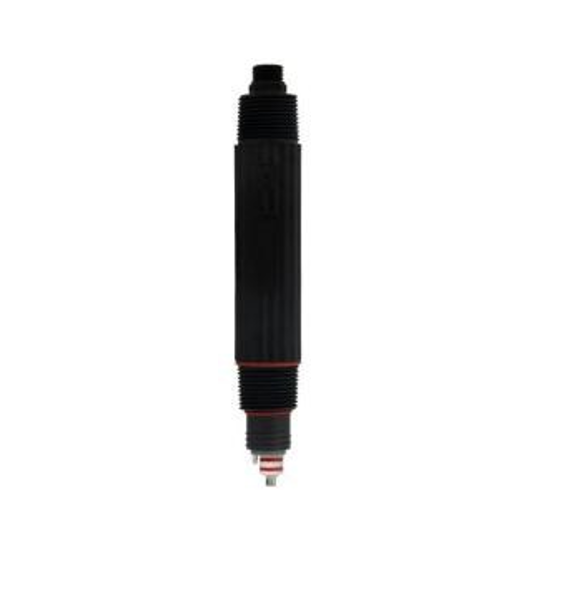

Daruifuno DRH79-YD01 Digital ORP Sensor (±2000mV, 5m, RS485, for DUC2-PH series)

Response Time: T90＜10s

Calibration Method: Zero position calibrationand slopecalibration

Work Pressure: ≤4Bar

Sample Flow: Rate 0.5m/s≥flow rate≥0.001m/s

Operating Temp:0~50℃ (does not freeze)

Storage Temp: 0~60℃ (does not freeze)

Shell Material: ABS or PPS

Dimension Diameter: 35mm, Length:220 mm (protective claw included)

Protection Grade: IP68

Power Supply: 9~24VDC

Power Consumption: 0.2W

Weight: 200g

Cable: Standard 5 meters(other length can be customized)

Measuring Object: ORP

Measuring Technology: Electro chemicapl latinum electrodes

Measuring Range: ORP: ±2000mV, TEMP:0~50℃

Resolution:1mV/ 0.1℃

Accuracy: 0.1% of the range or ±2mV, take the larger one; Temp: ±0.5℃

Communication: RS485 MODBUS-RTU

Temp Unit: Temp measurement
