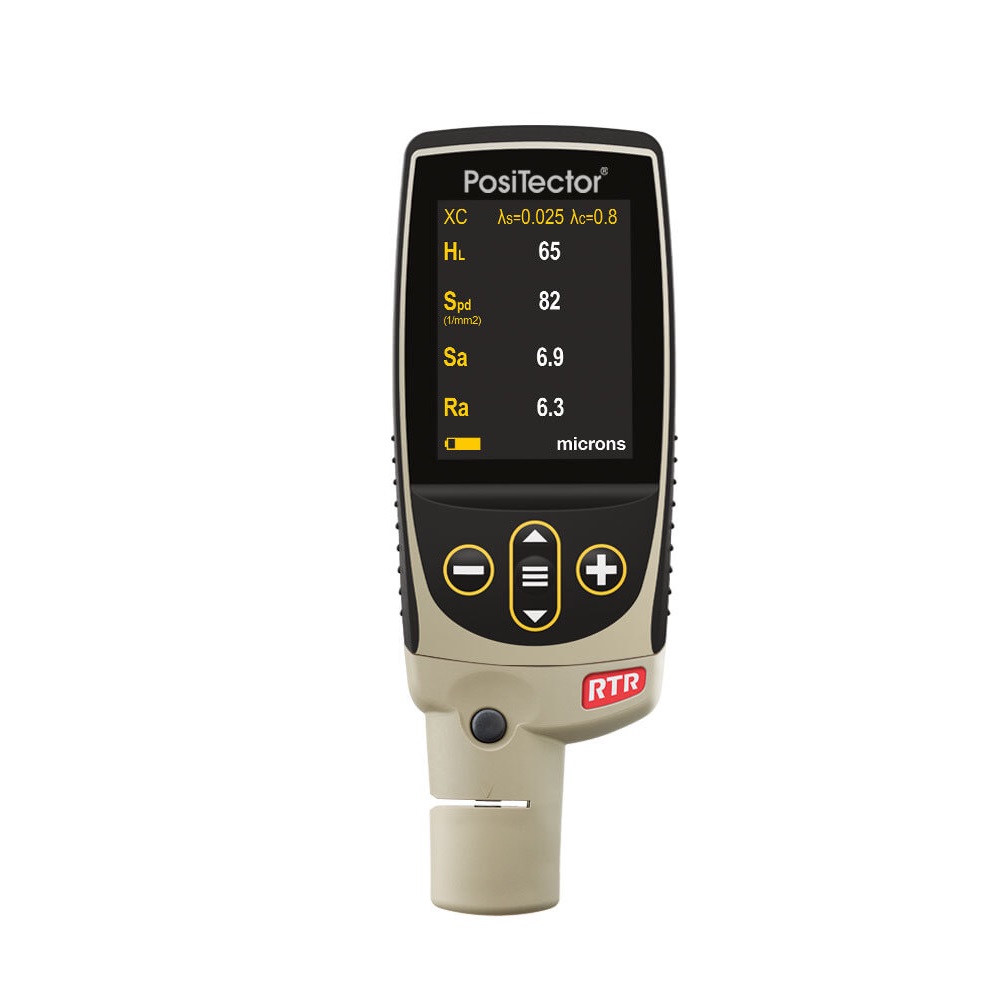

Replica Tape Reader to Measure and Record 2D/3D Surface Profile Parameters
Storage of 1,000 readings per probe
Measuring Range (H): 20 – 115 μm / 0.8 – 4.5 mils
Measuring Range (Rt): 10 – 115 μm / 0.4 – 4.5 mils
Minimum Roughness (Ra): 2 μm / 0.08 mil/80 μin
Accuracy (H): ± 5 μm / ± 0.2 mils
Accuracy (Rt)*: ± (5 μm + 5%) / ± (0.2 mils + 5%)
Accuracy (Ra)*: ± (0.25 μm + 5%) / ± (0.01 mils + 5%)
Anvil Pressure: 1.1 Newtons / 110 grams-force
Anvil Size: Ø6.35 mm / Ø0.25 inch
Field of View: 3.8 x 3.8 mm / 0.149 x 0.149 inch
Lateral Sampling: 3.7 μm / 0.145 mils
Vertical Resolution: 100 nm - 2D/3D, 10 nm - SDF / 3.93 μin - 2D/3D, 0.393 μin - SDF
Resolution: 0.1 μm / 0.01 mils
Accessories: stainless steel burnishing tool, burnishing ball, 5 cleaning cards, check shim(s), microfiber cleaning cloth, surface cleaning putty, protective rubber holster, wrist strap, 3 AAA alkaline batteries, instructions, nylon carrying case with shoulder strap, protective lens shield, Long Form Certificate of Calibration (containing Ra and Rt values) traceable to an accredited national laboratory, USB cable, PosiSoft Software.
