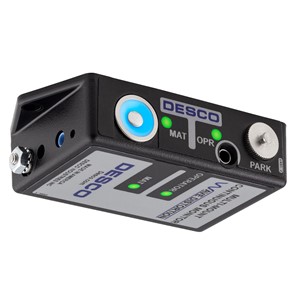

Desco 19337 Multi-Mount Continuous Monitor w/Universal Plug (50/60 Hz, 50–95 °F)

AC/DC Power Adapter

Input Voltage & Frequency: 100-240 VAC, 50/60 Hz

Power Output: 9 VDC

Cable Length: 5 ft. (1.5 m)

Environmental Requirements

Operating Temperature: 50 to 95° F (10 to 35° C)

Environmental Conditions: Indoor use only at altitudes less than 6,500 ft. (2 km); Maximum relative humidity of 80% up to 85° F (30° C) decreasing linearly to 50% @ 85° F (30° C)

Overall Dimensions (L x W x H): 3.87″ x 2.09″ x 0.90″ (98 mm x 53 mm x 23 mm)

Electrical Properties & Test Parameters

Operator Test Range*: 500 kilohms to 10 megohms impedance

Worksurface Test Limit: 10 megohms (±20%)

Operator Test Voltage: 1.2 V peak-to-peak @ 1.2 µA, open circuit

Worksurface Test Voltage: 5 to 7.5 V, open circuit

Alarm Response Time: < 50 ms
