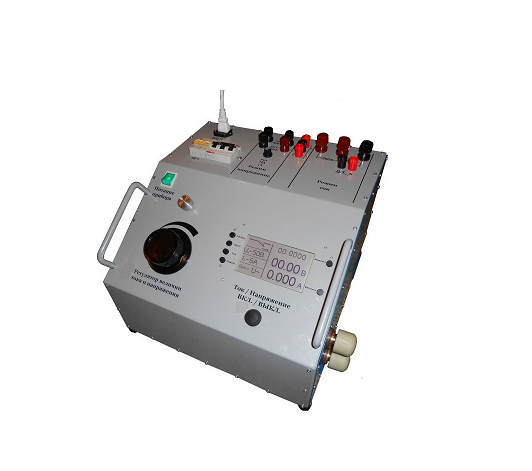

DTE UPZ-450/2000 Relays Protection Testing Device

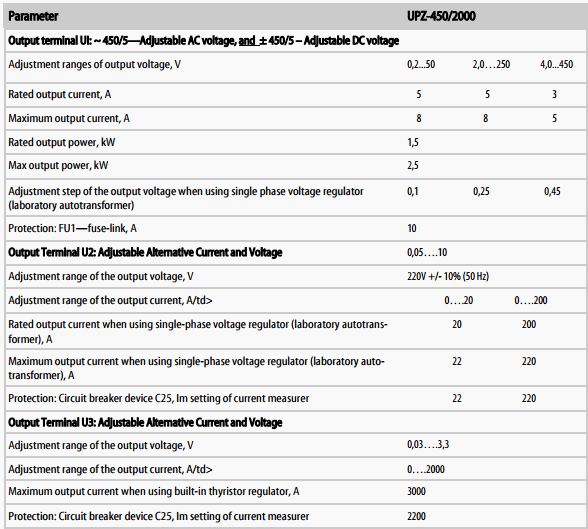

1. Output terminal UI: ~ 450/5 Adjustable AC voltage, and ± 450/5 Adjustable DC voltage
Adjustment ranges of output voltage: 0,2 to 50; 2,0 to 250; 4,0 to 450
Rated output current: 5A; 5A; 3A
Maximum output current: 8A; 8A; 5A
Rated output power: 1,5kW
Max output power: 2,5kW
Adjustment step of the output voltage when using single phase voltage regulator
(laboratory autotransformer): 0,1; 0,25; 0,45
Protection: FU1 fuse-link: 10 A
2. Output Terminal U2: Adjustable Alternative Current and Voltage
Adjustment range of the output voltage: 220V +/-10% (50 Hz)
Adjustment range of the output current, A/td: 0 to 20; 0 to 200
Rated output current when using single-phase voltage regulator (laboratory autotransformer),
A: 20; 200
Maximum output current when using single-phase voltage regulator (laboratory autotransformer),
A: 22; 220
Protection: Circuit breaker device C25, Im setting of current measurer 22; 220
3. Output Terminal U3: Adjustable Alternative Current and Voltage
Adjustment range of the output voltage, V 0,03 to 3,3
Adjustment range of the output current, A/td: 0 to 2000
Maximum output current when using built-in thyristor regulator: 3000A
Protection: Circuit breaker device C25, Im setting of current measurer 2200
