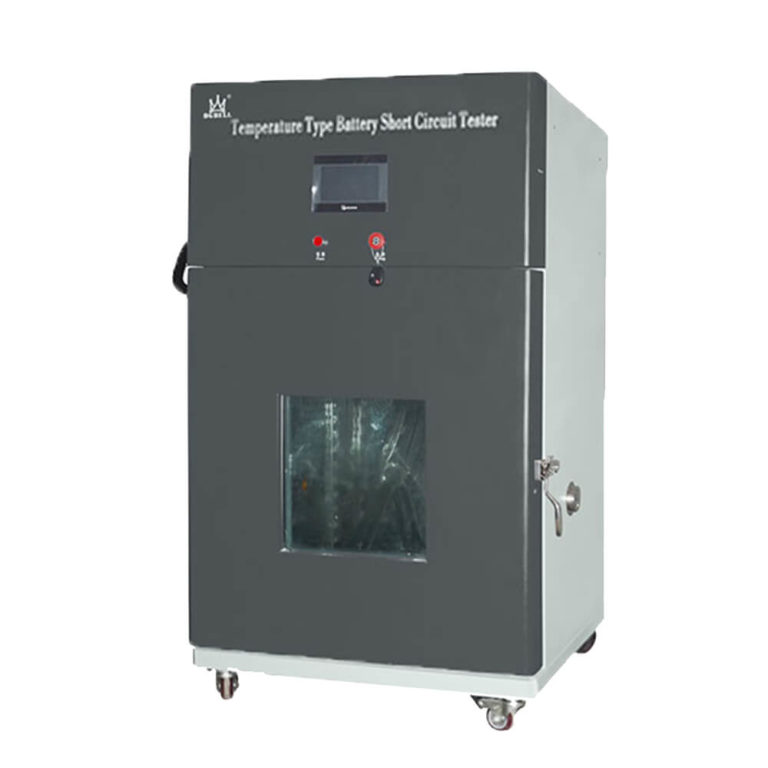

DGBell BE-8102 Temperature Control Battery Short Circuit Test Chamber (1000A, 80 ± 20 mΩ)
Manufacturer: DGBell Model: BE-8102 - Contact
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222)730.39.68
HCM city: (028) 38.119.636
Structure: All-in-one structure, the door uses explosion-proof lock and explosion-proof chain
Max. short-circuit current: 1000A
Internal Resistance: 80±20 mΩ (Load-current 400A)
Remote Control Available Distance: 7 meters without solid barrier
Controlling Mode: PLC touch type (7 inch) + remote control
Mechanical Life: 300 thousand times
Electric Life: Resistive load 50,000 times
Temperature Range: Normal temperature to 80°C or 0-80°C (Optional)
Temperature Fluctuation: ±1℃
Temperature Deviation: ±2℃
Inner Chamber Dimension: W600 X D500 X H600mm
Inner Chamber Material: 1.0mm thickness 304# stainless steel
External Chamber Dimension: W940XD780XH1620 mm
External Chamber Material: Cold-rolled sheet paint with1.5mm thickness, total thickness together with inner chamber is 100mm)
Observation Window: 390 X 360mm (20mm thick explosion-proof tempered glass) and protective steel mesh
Power Supply: AC220V / 3.0KW
Data Output: Current and voltage temperature can be recorded with the interface display. The test data can be directly output by USB flash disk
Security System: Explosion-proof pressure relief device, smoke exhaust device, fire extinguishing system, electronic door lock system, safety stop switch
Options: Temperature acquisition, voltage acquisition system, video monitoring system
