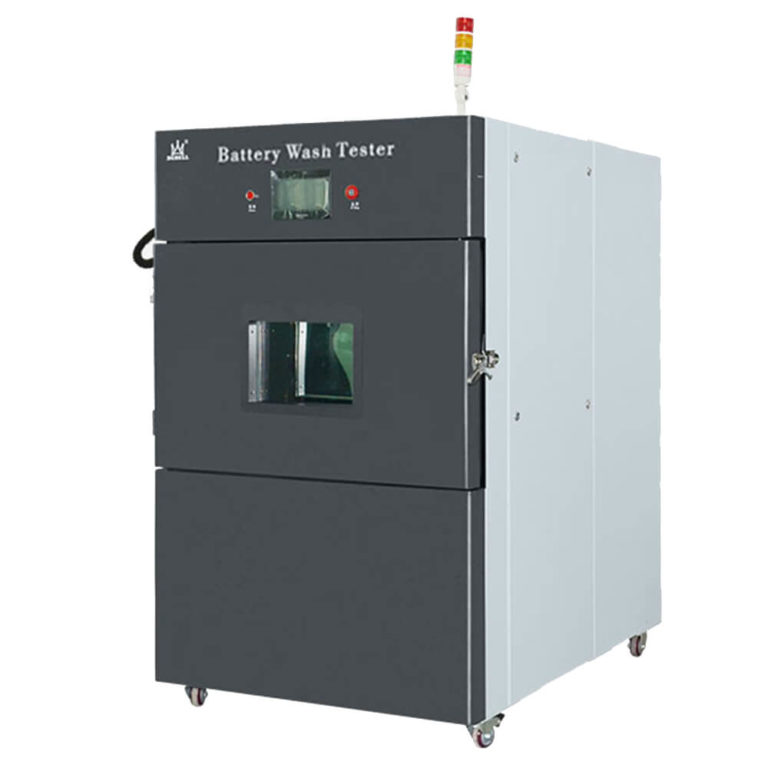

Instruction: All-in-one structure, install explosion-proof lock + explosion-proof door
Testing Rotary Plate Diameter: 500±10MM
Inner Barrel Diameter: 650MM
Inner Barrel Depth: 550MM
Plate Rotation Speed Range: 1—900rpm/min controllable
Speed Accuracy: 0.01
Control System: PLC touch control + Remote control
Control Method: Programmable, fully automatic testing.Returning to origin – adding water – raising – heating – dropping – soaking – stirring – draining – dewatering – de-cylindering – drying – complete.
Servo Motor: Japan Panasonic servo motor
Time Setting: 0-999 hours (Adjustable)
Liquid Temperature Range: RT+10℃ ~ 80℃（controllable)
Water Temperature Deviation: ±2℃
Water Temperature Accuracy: 0.1℃
Water Temperature Heating Rate: RT ~ 45℃ ,Less than 40min
Drying Temperature Range: RT+10℃ ~ 80℃（controllable)
Wind Temperature Deviation: ±2℃
Wind Temperature Display Accuracy: 0.1℃
Wind Temperature Heating Rate: RT ~ 45℃ ,Less than 40min
Water Control Method: Automatic water pump
Heating Control System: Heating tube: water temperature control heating and thermostat control heating control separately
Transmission System: Driven by motor, screw drive control lift
Alarm Device: Tri-color warning light
Observation Window: 370X350MM,Three-layers vacuum tempered glass
Internal Material: SUS 316# ,Stainless steel
External Material: 1.5mm thickness Cold plate paint baked coating
Power Supply: AC 380V /14.0KW
Total Dimension: W1150 X H1780 X D1550 MM
USB Interface: With USB interface, test data can be output
