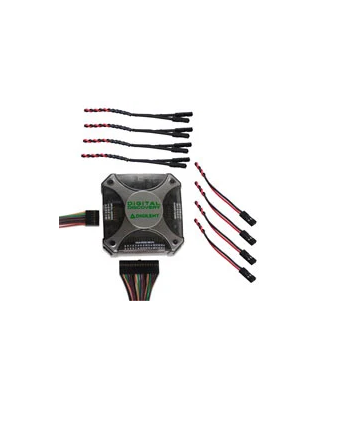

Digilent 240-127 Portable USB Logic Analyzer and Digital Pattern Generator

Software

WaveForms: WaveForms Resource Center

Digital Logic Analyzer

Channels: 24

Sample Rate: 800 MS/s (with the High Speed Adapter)

Bandwidth: 100 MHz+

Voltage Range: 1.2V to 3.3V (5V compatible when used as inputs)

Buffer: 2Gbit DDR3 acquisition

Bus Analyzers: SPI, I2C, UART, CAN, 125, Parallel and Custom

Digital Pattern Generator

Channels: 16

Sample Rate: 100 MS/s

Bandwidth: 50MHz

Voltage Range: 1.2V to 3.3V

Bus Output: Counters and Custom

Multi-purpose Digital I/O

Channels: 16

Sample Rate: 100 MS/s (50 MHz max output frequency)

Voltage Range: 1.2V to 3.3V (5V compatible when used as inputs)

Buffer: Algorithmic pattern generator (no buffers used)

Protocol Analyzer

Channels: 16-32

Voltage Range: 1.2V to 3.3V (inputs 5V compatible)

Bus Analyzers

UART: send and receive

SPI: read and write

12C: read and write

CAN: rx and tx

Programmable Power Supplies

Voltage Range: 1.2V to 3.3V

Current Limit: 100 mA max available in each of the two 2x6 MTE connectors

Datasheet
