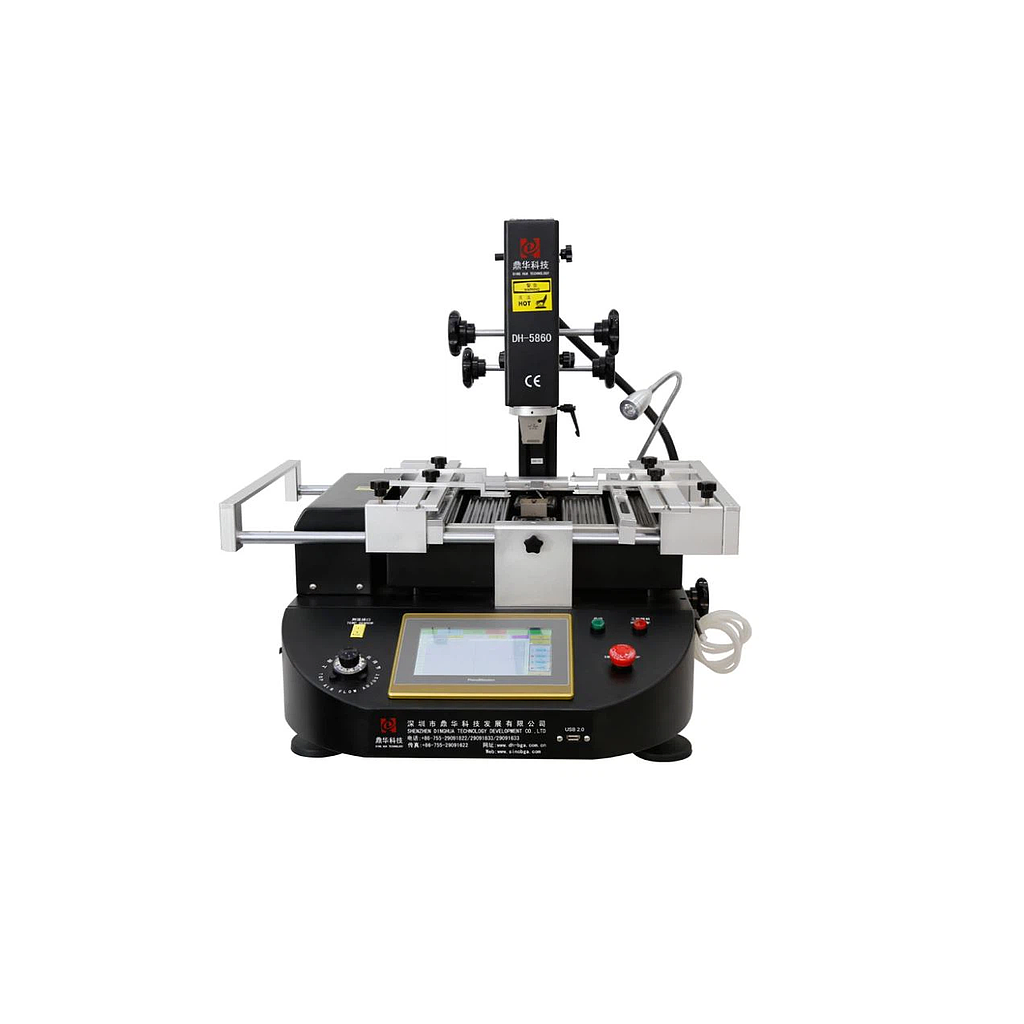

Dinghua DH-5860 BGA Rework Station
Manufacturer: DINGHUA TECHNOLOGY Model: DH-5860 - Contact
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222)730.39.68
HCM city: (028) 38.119.636
Total Power: 4800W
Top heater: 800W
Bottom heater: 2nd 1200W, 3rd IR heater 2700W
Power: AC220V±10％ 50Hz
Lighting: Taiwan led working light, any angle adjusted.
Operation mode: Drawer style HD touch screen, intelligent conversational interface, digital system setting
Storage: 50000 groups
Top head movement: Right/left, frontward/backward, rotate freely.
Top hot air speed: Can be adjusted with adjusting knob
Positioning: Intelligent positioning, PCB can be adjusted in X, Y direction with “5 points support” + V-groov pcb bracket + universal fixtures.
Temperature control: K sensor, close loop
Temp accuracy: ±2℃
PCB size: Max 420×400 mm Min 22×22 mm
BGA chip: 2x2 - 80x80 mm
Minimum chip spacing: 0.15mm
External temper sensor: 1pc
Dimensions: 640*630*590mm
Net weight: 38KG
