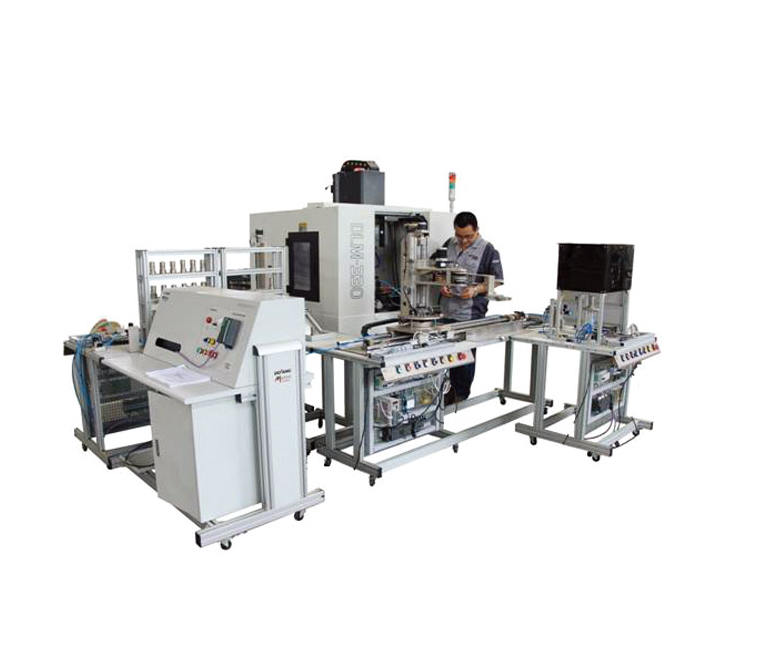

DOLANG DLRB-501 Flexible Manufacture System

● Input power: three-phase, four-wire 380V±10% 50Hz/60Hz

● Leakage protection: I △ n ≤ 30mA, t ≤ 0.1S

● Control power supply: DC24V

Accident emergency off button, power supply indicators, power on indicator, protection against wrong power on.

● Working environment: temperature -10℃~ +40℃ relative humidity 35% ~ 65% (25℃ ) elevation <4000M

● Capacity: ≤ 5kVA Pneumatic source pressure range: 0.4 ~ 0.6Mpa

Total dimension: 3200 × 3600 ×2200mm

Table height: 750mm

● Robot model can be optional according to requirement

■ Optional

● CNC milling machine

Datasheet

●The system is divided into five working units (workstation) : Console unit, robot handling unit, CNC milling machine unit, raw material finished product storage unit, testing unit
