● Working power supply: three-phase, five-wire AC 380V±10% 50Hz/60Hz
● Control power supply: DC 24V
● Capacity: < 8KVA
● Total dimension: 1455×640×1700mm
● Safety protection: leakage protection (action current≤ 30mA) over current protection, overload fuse protection
● Milling machine semi-physical parameter:
Workbench moving stroke: X 120mm,Y 150mm,Z 120mm
Maximum moving speed of the table: 3000mm/min
Maximum spindle speed :1400r/min 25W
Milling machine semi-physical dimension: 939×740×1520mm
■ Optional (System)
● Siemens system
● Fanuc system
● HCNC
● GSK system
Datasheet

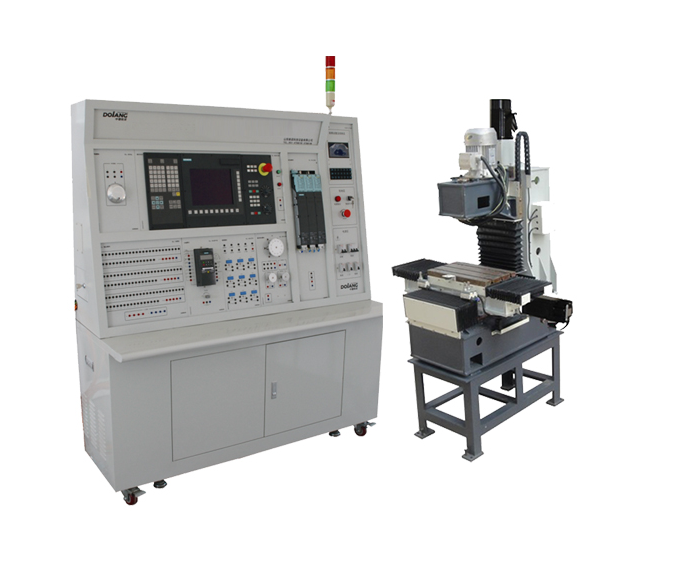

The CNC trainer adopts Siemens SINUMERIK 802C base line, X-axis, Y-axis, Z-axis are driven by servo motor, spindle motor i s driven by frequency converter. This device organically combines the machine's electrical parts with mechanical parts, it consists of a CNC system, frequency converter spindle system, electrical control panels, power control section, ect.
The device can complete a number of teaching and training such as CNC system installation, parameter setting, fault diagnosis and maintenance, CNC programming and machining operation.
