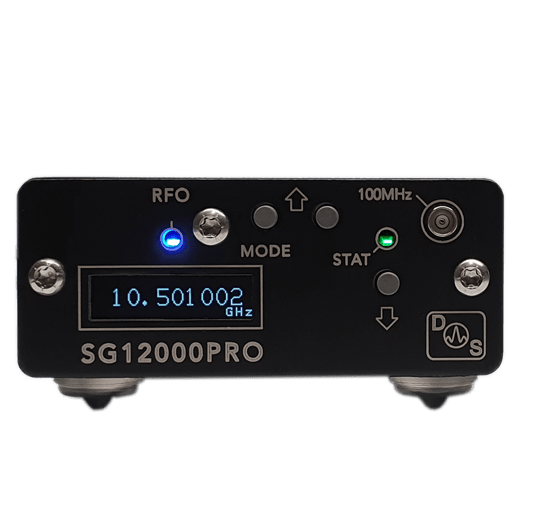

DS INSTRUMENTS SG12000PRO Puresine Generator (50-13000 MHz)
Manufacturer: DS INSTRUMENTS Model: SG12000PRO Guarantee: 12 Month - Contact
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222)730.39.68
HCM city: (028) 38.119.636
Highest Harmonic Levels: -30dBc typical (1-13GHz)
Frequency Range: 50-13000 MHz (10-15000MHz uncalibrated mode)
Power Output Level: -45dBm to +15dBm
Phase Noise at 12GHz: -94dBc at 10KHz offset
Minimum frequency step size: 2Hz
Internal Attenuator (digital 0-6GHz): 64dB (250 x 0.25dB Steps)
Internal Attenuator (digital 6-13GHz): 64dB (128 x 0.50dB Steps)
Internal Attenuator (variable 0-15GHz): ~15dB (10 bit DAC)
Dimensions: 2.75″ x 1.25″ x 5.15″
Input Voltage: 5V Standard USB-C (1.50A max)
Output Impedance: 50 Ohm
RF Connector: Premium gold 18GHz microwave SMA
