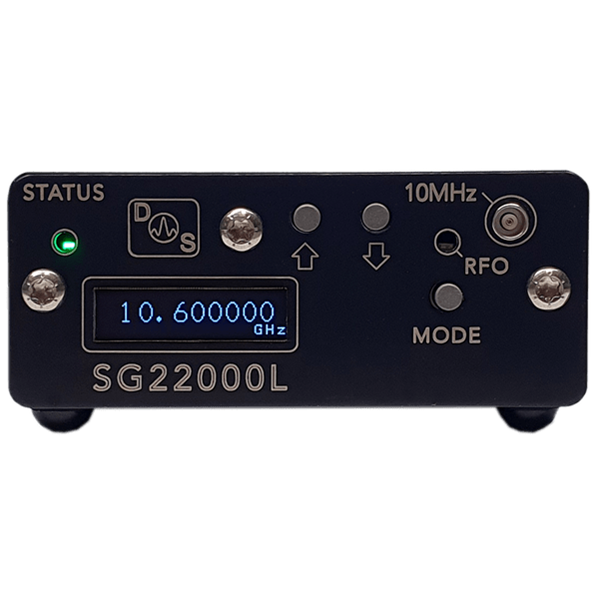

DS INSTRUMENTS SG22000L Wideband Microwave Generator (20 – 22000MHz)
Manufacturer: DS INSTRUMENTS Model: SG22000L Guarantee: 12 Month - Contact
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222)730.39.68
HCM city: (028) 38.119.636
Total Frequency Coverage: 20 – 22000MHz (24GHz at reduced performance)
Band 1 Range: 20 to 13000MHz
Band 1 Power: -20 to +10dBm (calibrated 0.5dB steps & fine-tune vernier)
Band 2 Range: 13000 to 22000MHz
Band 2 Power Level +15dBm typical
Phase Noise: 6GHz at 10KHz offset: -85dBc/Hz
Phase Noise: 12GHz at 10KHz offset: -78dBc/Hz
Phase Noise: 18GHz at 10KHz offset: -73dBc/Hz
Min frequency step size: 2Hz
Dimensions: 2.75″ x 1.25″ x 4.15″
Input Voltage: 5V at 1.0A (USB-C)
Internal Reference: 10MHz ±280PPB TCXO
