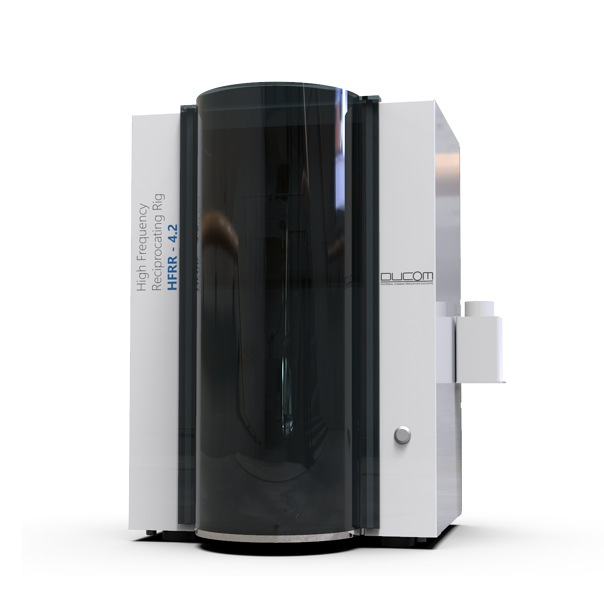

DUCOM HFRR-4.2 High Frequency Reciprocating Rig (20µm~2mm; 10N)
Manufacturer: DUCOM Model: HFRR-4.2 Guarantee: 12 Month - Contact
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222)730.39.68
HCM city: (028) 38.119.636
Frequency: 10 to 200Hz
Stroke length: 20µm to 2.0mm
Normal load: 0 to 1.0kg (dead weights)
Friction force (max): 10.0N
Temperature: Ambient to 150°C (high temperature module)
Fluid volume: 2 ml
Upper specimen (ball): 6mm in diameter
Bottom specimen (disk): 10mm in diameter x 3 mm thick
Power: 100 to 240 VAC, 50/60 Hz
Test standards: ASTM D6079, ASTM D7688, ISO 12156-1, GOST R ISO 12156-1-2006, JPI-5S-50-98, BS EN 590, IP 450/2000, CEC F-06-A-96, SH/T 0765
