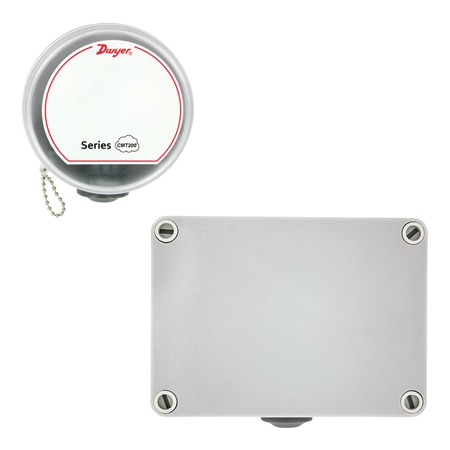

Dwyer CMT200-R-FC CMT200 CO Transmitter for Garage & Mechanical Room, Replaceable Sensor (0 to 200 ppm, Field Replaceable Electrochemical)

Drift: <5%/Year in Air

Weight: 0.28 lb

Accuracy: ± 2 %, ± 5% with transitional flow

Compliance: CE

Sensor Life: 4 Years

Sensor Type: Field Replaceable Electrochemical

Display Type: N/A

Coverage Area: 5000 to 7000 sq ft

Output Detail: Jumper selectable 4-20 mA (loop powered) or 2-10 V (load must be >50 kΩ)

Output Signal: Current, Voltage

Response Time: <45 s to 90%

Enclosure Type: Rugged Housing

Supply Voltage: Current: 18 to 28 Vdc; Voltage: 18 to 28 Vdc/Vac

Gas Concentration: 0 to 200 ppm

Relative Humidity: 15 to 90% RH Constant, 0 to 99% RH Intermittent

Supply Power Note: Current output: 18-28 VDC; Voltage output: 18-28 VDC/ VAC, reverse polarity protected

Supply Power Type: AC/DC

Calibration Option: Factory Calibration Certificate

Additional Features 1: Factory Calibration Certificate

Electrical Connection: Conduit Knockouts with terminal block

Storage Temperature, Max: 68 °F

Storage Temperature, Min: 32 °F

Operating Temperature, Max: 122 °F

Operating Temperature, Min: -4 °F

Zero Setting Adjustable Range: 15 Turn Potentiometers
