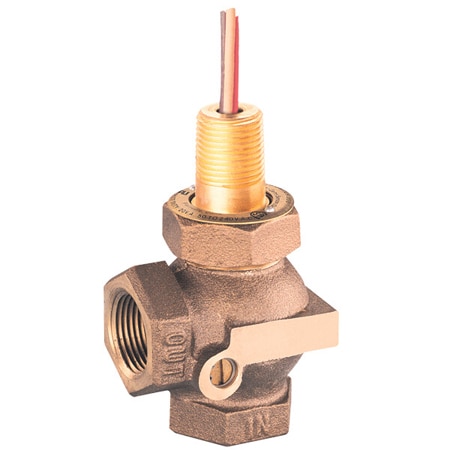

Dwyer G9-22 Globe Flow Switch for Water/Oil – ± 1% Repeatability – Easy Adjustment (8 GPM)

Filter: 150 μ or better

Weight: 0.76 kg

Accuracy: ± 10 %

Compliance: CE

Wire Gauge: 18 AWG

Port 1 Size: 3/4 in

Port 1 Type: NPT Female

Port 2 Size: 3/4 in

Port 2 Type: NPT Female

Sensor Type: Compatible Liquids

Switch Type: SPDT NO/NC, Selectable

Accuracy Note: ± 10% of set point

Pressure Type: Gauge

Repeatability: ± 1%

Switch Rating: 0.17A@120Vac,0.08A@240Vac,0.13A@120Vdc,0.06A@240Vdc

Pressure Limits: Up to 400 psi

Sensor Material: Bronze, Acetal; Stainless Steel, Fluoroelastomer, Ceramic

Repeatability Note: ± 1% max deviation

Mounting Orientation: Vertical Lead wires up

Pressure Limits Note: 400 psi (27 bar) @ 100°F (37.8°C)

Electrical Connection: Pigtail Leads

Actuation Set Point, Max: 8 GPM

Actuation Set Point, Min: 2 GPM

Operating Temperature, Max: 180 °F

Operating Temperature, Min: -29 °F
