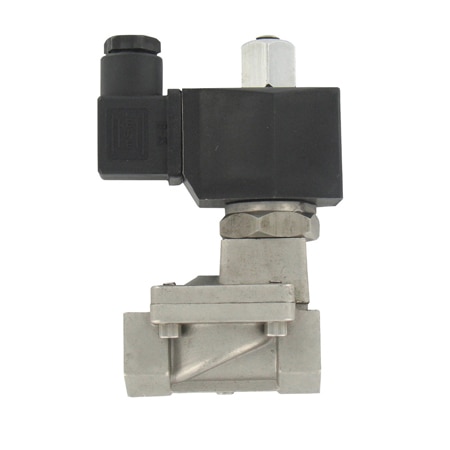

Dwyer SSV-S3F1 Bi-Directional Stainless Steel Solenoid Valves, Normally Open, 1/8-2" NPT (4.5 gal/min, 3/8 in, NPT Female, 0.51 in)
Manufacturer: Dwyer Model: SSV-S3F1 - Contact
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222)730.39.68
HCM city: (028) 38.119.636
Weight: 2.09 lb
Cv Factor: 4.5 gal/min
Materials: Nylon
Compliance: CE
Orifice Size: 0.51 in
Supply Voltage: 110 Vac
supply-voltage: 110 Vac
Pressure Limits: Up to 174 psi
Enclosure Ratings: IP54, NEMA Type 13
Materials, Wetted: Fluoroelastomer, Stainless Steel
Power Consumption: Inrush: 82 VA, Holding: 33 VA
Supply Power Type: AC
Type of Operation: Normally Open
Media Compatibility: Consult Factory
Mounting Orientation: None
Electrical Connection: DIN 43650 A (solenoid valve)
Process Connection Size: 3/8 in
Process Connection Type: NPT Female
Operating Pressure Range: 7.3 to 116 psi
Operating Temperature, Max: 149 °F
Operating Temperature, Min: 32 °F
