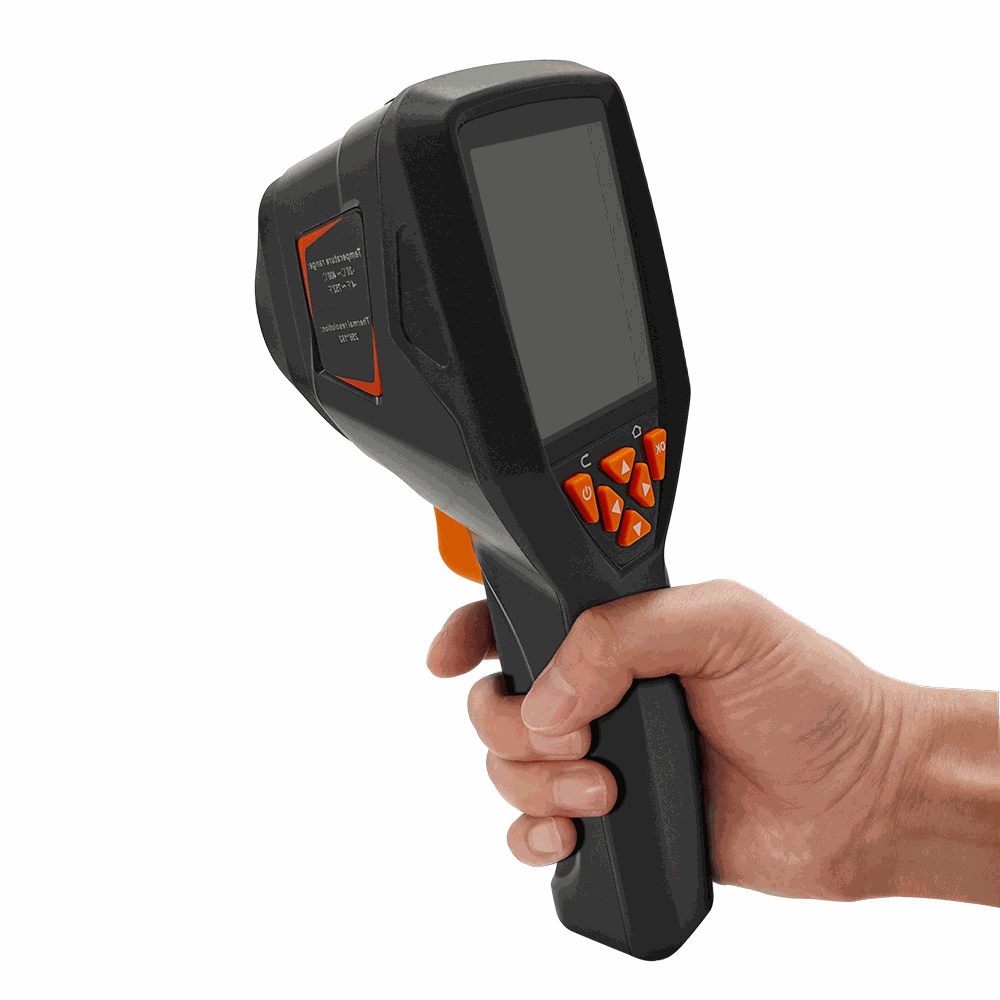

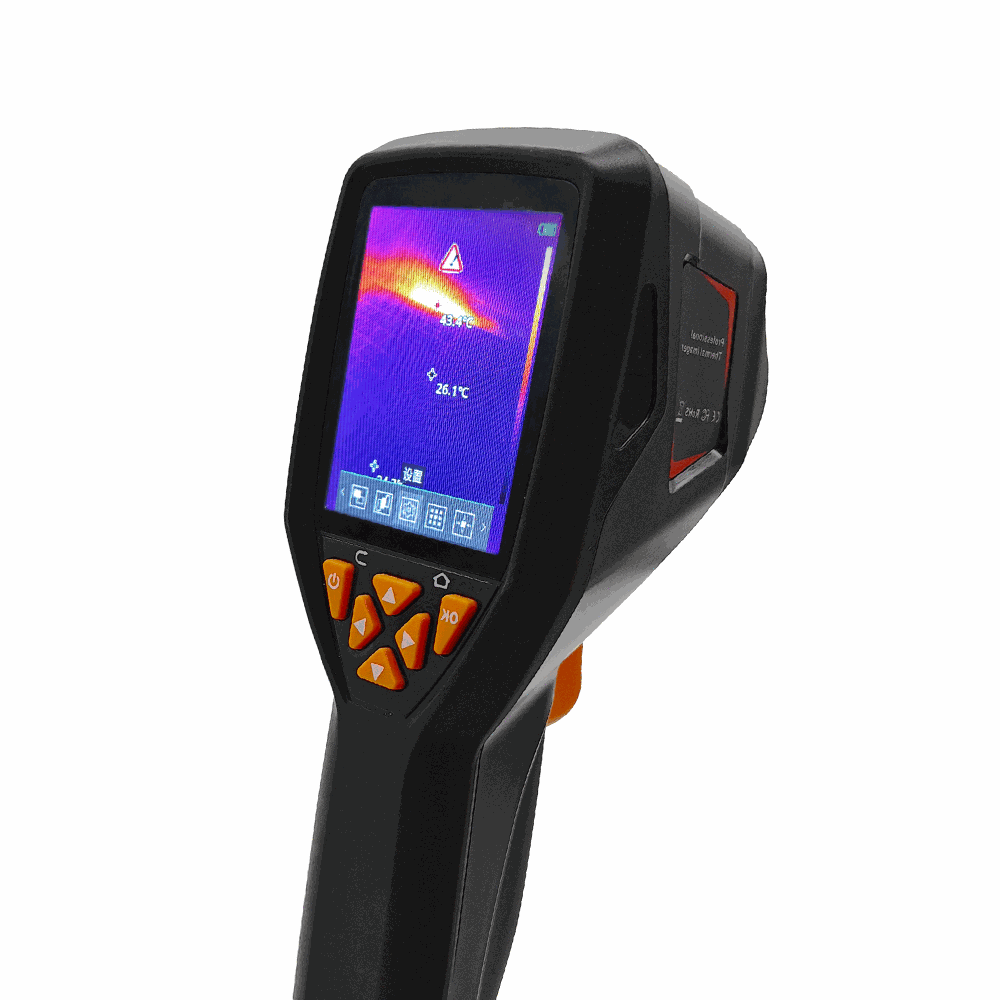

DYT DP-15 Thermal Camera (256*192, -20~400℃)

Name: DYT DP-15 Thermal Camera (256*192, -20~400℃)
Brand: DYT

ManufacturerDYT(View more products from this manufacturer)

ModelDP-15

Contact

Quantity

Secure Checkout

Quality Engagement

Easy change and return

Delivery Available

Infrared

Sensor resolution: 256×192 / 120×90

Spectral range: 8~14um

Frequency: 25Hz

NETD: 70mK@25℃

FOV: 55°X83° / 38°X50°

Lens: 3.2mm / 2.3mm F1.1

Temperature range: -20~400℃

Accuracy: ±2°C or ±2%

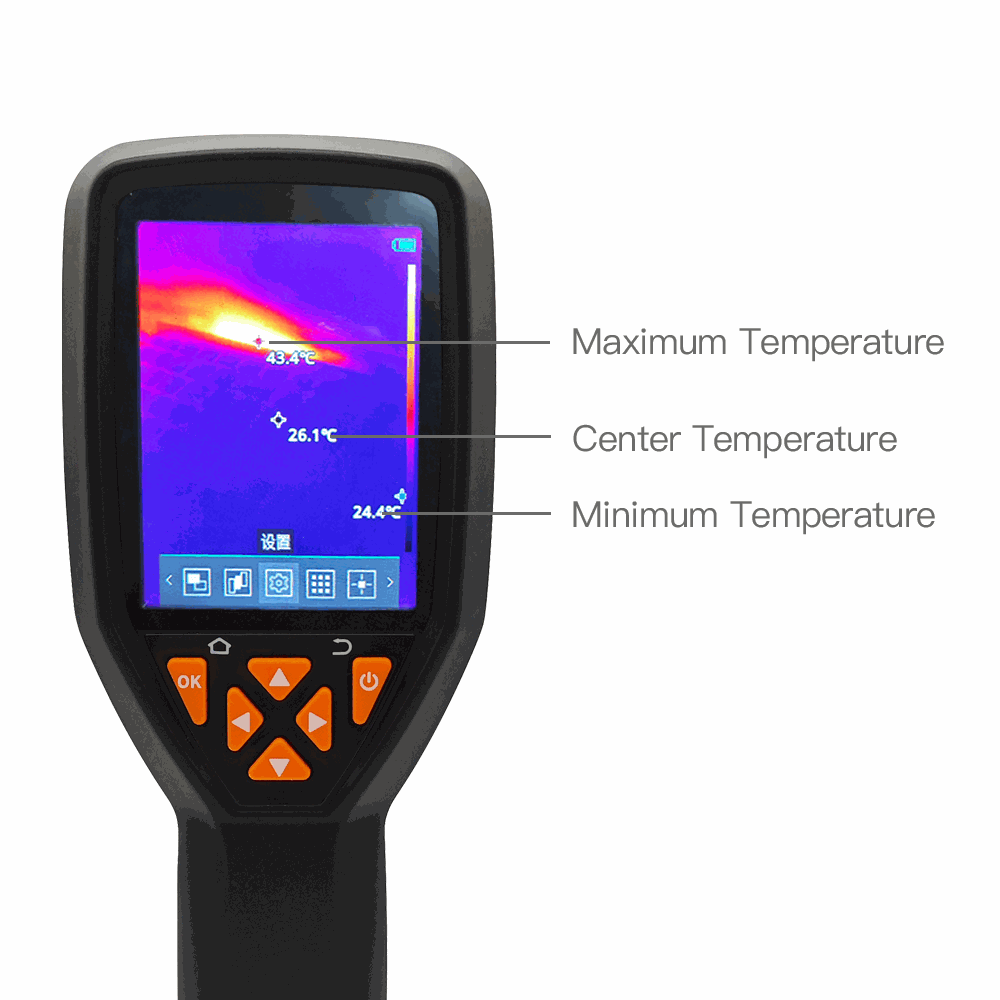

Measurement option: Highest,lowest、central and zone temperature

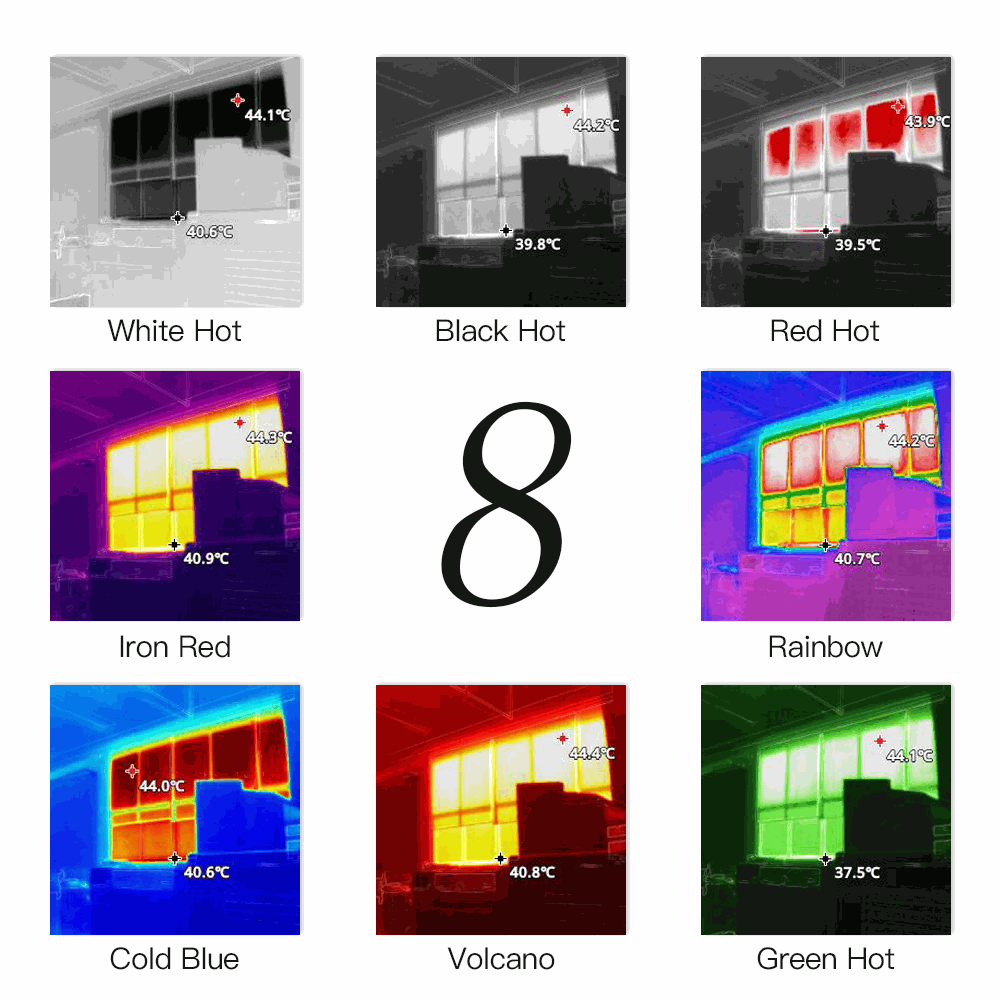

Palette: Iron red、white hot、black hot、rainbow, red hot、high contrast、green hot、volcano

Visual light

Resolution: 720P

FOV: 55°X83°

Display

Screen: 2.8 inch

Image mode: Edge blend、overlay blend、Pip、thermal、visual light

General

Language: English、French、Germany、Spanish、Arab and more

Interface: USB Type-C

Battery: 2600mAh Li-ion rechargeable

Working time: Around 4 hours continuous use

Working temp: -10°C~+60°C

Storage temp:-40°C~+85°C

Product size: 70mmx80mmx200mm

N.W: 310g

Dimension: 115mmx170mmx300mm

Storage

Capacity: 8G memory, store more than 20k pictures

Picture format: JPG

Video format: MP4

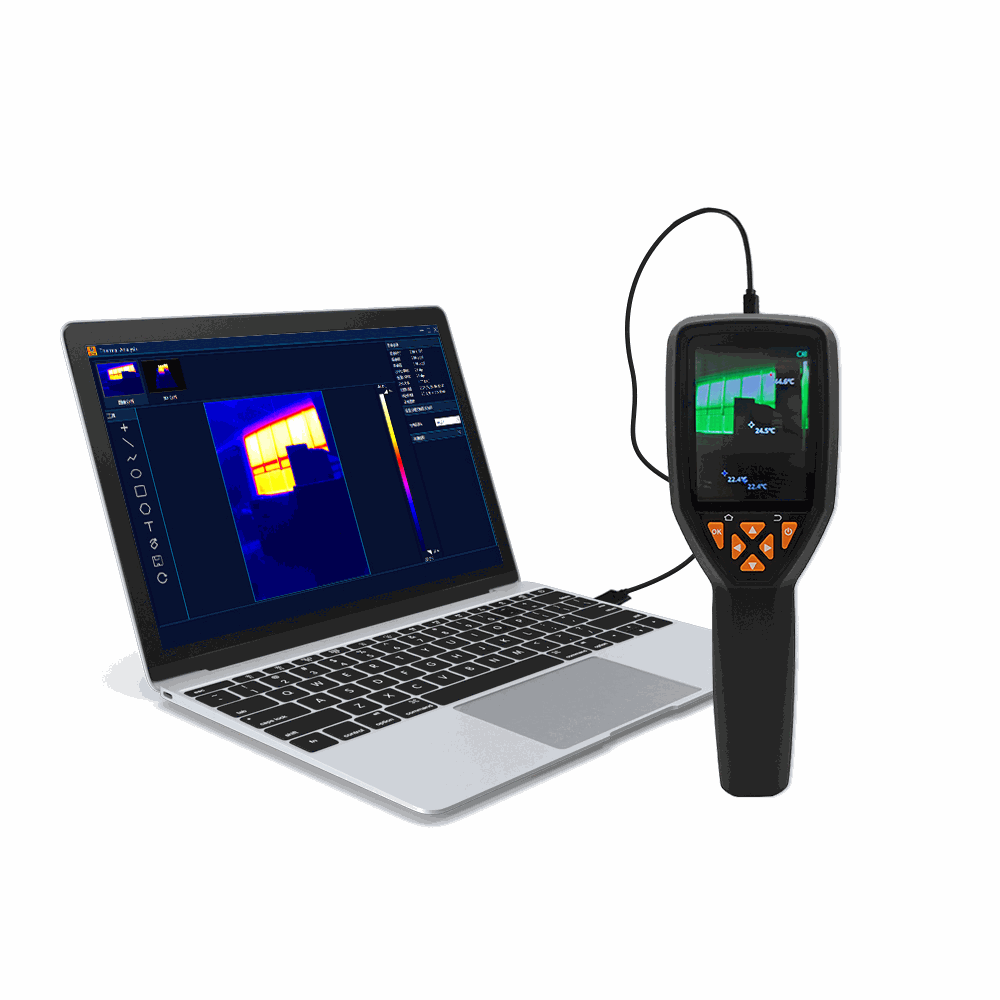

3D handheld thermal camera is an intimate tool for quickly locating and diagnosing electrical, mechanical, building, and floor heating problems. Assist you quickly locate hotspots and easily identify problems. Powerful computer analysis software can transmit video in real-time, organize photos offline, and add detailed notes. Besides, share and save the current analysis report to make the detection more efficient.

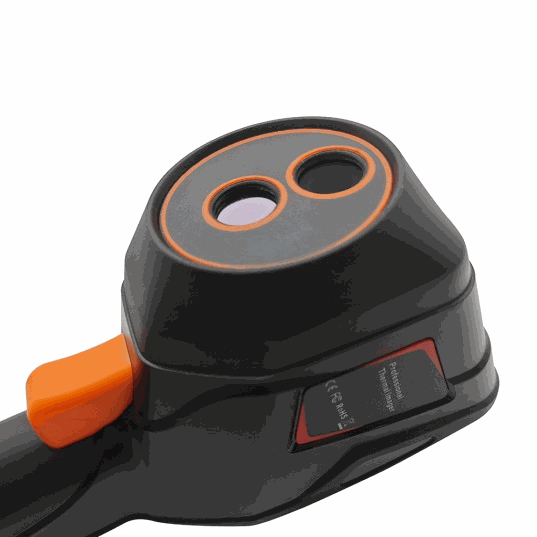

Double light design

Outfit infrared light and visible light to capture more details
