Type of detector:Vanadium oxide uncooled infrared focal plane
Resolution:256*192
Spectral range:(8-14)um
Temperature measuring range:High gain (-20 – 120) ℃, expandable to 450℃
Temperature measuring accuracy:±3℃ or ±3% of the reading, whichever is greaterPixel spacing12um
NETD:＜60mK @25℃，F#1.0
Frame frequency:25Hz/15Hz
Image enhancement:Multi-level detail enhancement
Interface:With USB interface board
Lens:4mm, 6mm, 8mm, and 11mm/F1.0 lenses (customizable lens) are supported
Blank:Auto/manual
Working temperature:(-15-60)℃
Interface board size:(20´20)mm
Weight:<18g
Temperature calibration:Secondary calibration is provided
Voltage:(3.8~5.5)V DC
Power consumption:<200mW
Overview

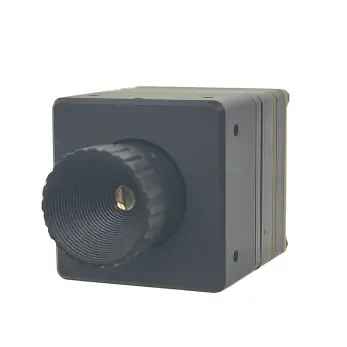

M10-256 integrated infrared thermal imaging core is a high-performance infrared thermal imaging product developed on the basis of a wafer-grade encapsulated uncooled vanadium oxide infrared detector. USB interface output is adopted for the product, for which it boasts multiple control interfaces and is adaptable to various intelligent processing platforms. With its high performance, low power consumption, small size, and a feature of easy development and integration, the product is suitable for secondary development needs of various infrared temperature measuring products.
Product Features
Easy to integrate with a size of (30 * 30 * 32) mm;
With multiple interfaces; adaptable to other platforms; USB interface and HDMI interface supported;
Low power consumption; easy to integrate into intelligent devices;
High image quality;
Accurate temperature measuring, with a range of -20℃ - 450℃;
The movement has strong processing capacity to ensure rapid backend development;
Full-screen temperature output and multiple palettes are supported;
Standard data interface; secondary development is supported; and SDK development packages for Windows, Android and Linux are provided;
