Resolution:384×288
Pixel Pitch:17um
Wavelength:8~14um
Frame Rate:50Hz
NETD:60mK@25℃
FOV / Angular resolution:Please see below table for detail
Temperature range:-20~150℃ (Can be customized, Non-radiometric version cannot support this feature)
Radiometric area:Support global high and low temperature tracking, support point, line, rectangle, ellipse radiometric in the chosen area, support high and low temperature tracking in the area. (Non-radiometric version cannot support this feature)
Image enhance:Adaptive stretching, manual enhancement, electronic zoom 2x and 4x
Color pallet:white heat, black heat, iron red, rainbow and user-defined color pallet etc.
Focusing mode:manual
Date Format
Single frame:BMP image format with full resolution radiation temperature information
Digital video:MP4
Analog video:NTSC/PAL
Data storage:Support Micro SD card local storage to maximum 32GB
Electrical Interface
Power:DC9~15V (propose 12V)，typical power consumption 2.8W@25℃
Serial port:RS485/RS232-TTL，support Pelco PTZ protocol
Electrical lens:12V electrical lens
GPIO:1 channel magnetic isolation input: 0, input voltage < 1V; 1, input voltage 1~3.3V.
Environmental Parameters
Working temperature:-20~+60℃
Storage temperature:-40ºC~+85℃
Humidity:Non-condensing 10%~95%
Case protection:IP54
Shock:25G
Vibration:2G
Mechanical Parameter
Weight:135g（including f25 lens）
Dimension:56(L)*42(W)*42(H)mm/44(L)*42(W)*42(H)mm（without lens）
Installation:4 M2 side thread mounting holes, 2*4 M3 side thread mounting holes, with 1/4 UNC-20 PTZ adapter.
Overview

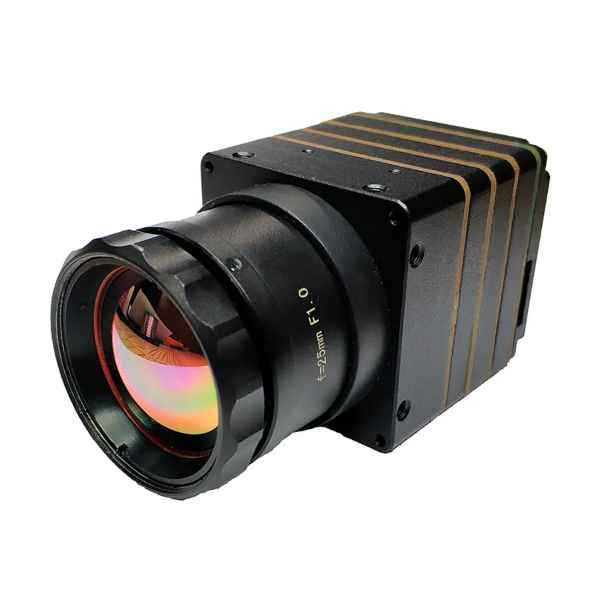

Shenzhen's Dianyang UAV (Unmanned Aerial Vehicle) infrared thermal camera is a small-sized temperature-measuring infrared camera. The product adopts imported detectors, with stable operation and excellent performance. It is equipped with unique temperature calibration algorithm and easy-to-use user interface. It is small in size, light in weight and rich in interface, suitable for UAV.
Product Features
Small size, section size is 42mm*42mm;
4-channel flight control PWM channel, support universal remote control
Support electric focusing
Micro SD card stores video and photos to ensure data integrity
Support high and low temperature tracking to quickly find hot spots

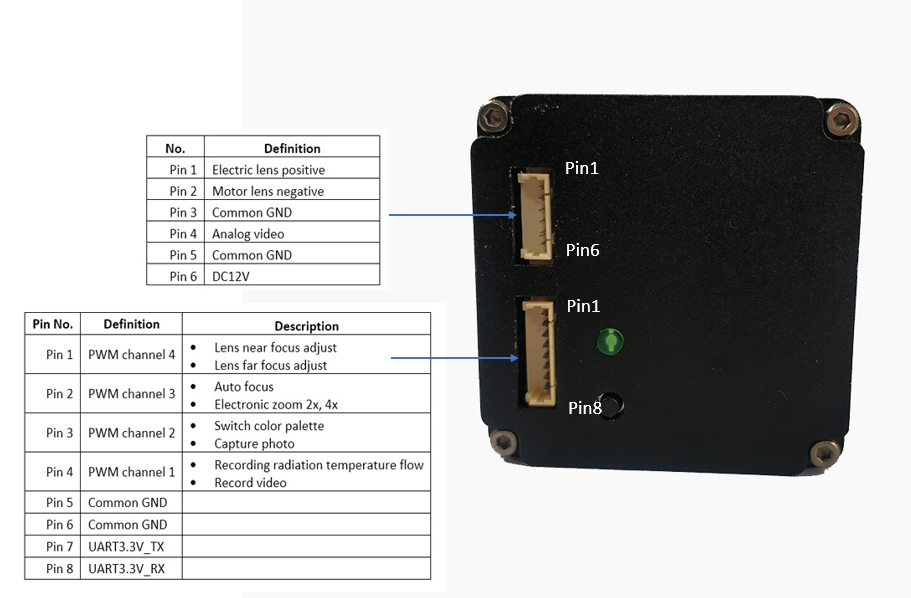

Interface description

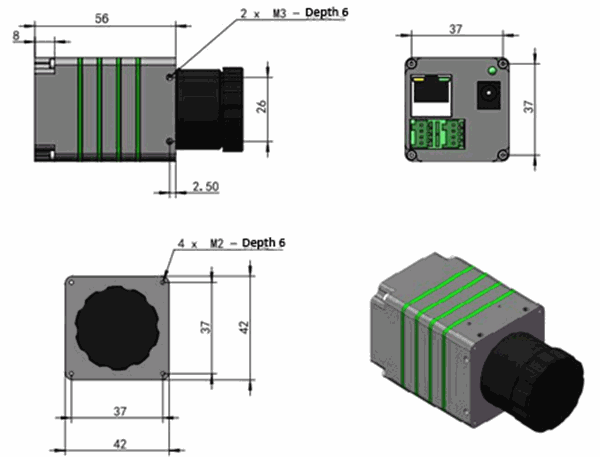

Dimension
