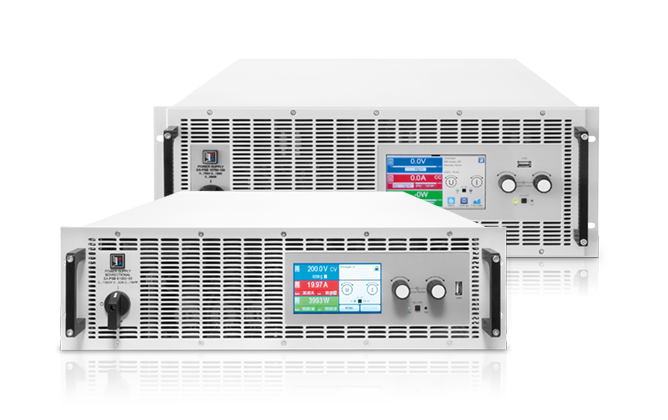

EA Elektro-Automatik PSB 10080-170 Programmable Bidirectional DC Power Supply (80V; 170A; 5000W)
Manufacturer: EA Elektro-Automatik Model: PSB 10080-170 P/N: 30000738 - Contact
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222)730.39.68
HCM city: (028) 38.119.636
DC output:
Voltage range: 0 - 80 V
Ripple in CV (rms): ≤10 mV (BW 300 kHz)
Ripple in CV (pp): ≤100 mV (BW 20 MHz)
U Min for IMax (sink): 0.5 V
Current range: 0 - 170 A
Power range: 0 - 5000 W (0 - 3000 W) *2
Resistance range: 0.016 Ω - 26 Ω
Output capacitance: 7790 μF
Effi ciency (up to): 94.5% *1
Insulation:
Negative DC pole <-> PE : ±600 V DC
Positive DC pole <-> PE : +600 V DC
*1 At 100% power and 100% output voltage
*2 In AC voltage depending DC power derating mode
