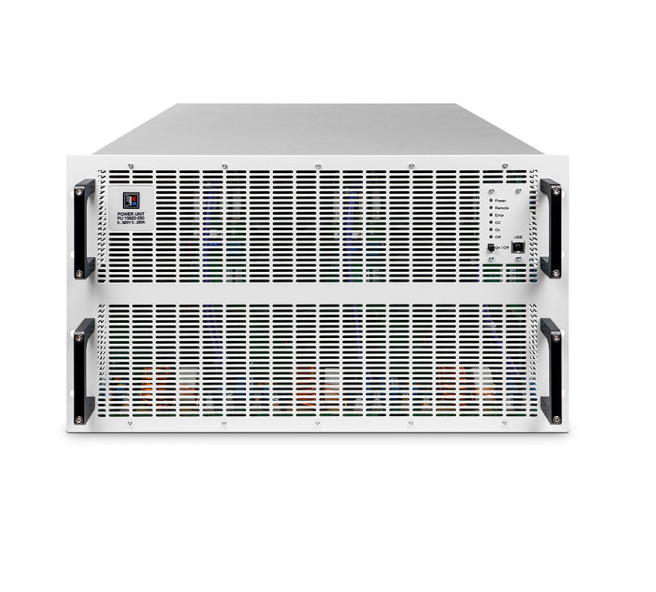

EA Elektro-Automatik PUL 11000-160 Programmable Electronic DC Load with Energy Recovery (1000V; 160A; 60000W)
Manufacturer: EA Elektro-Automatik Model: PUL 11000-160 P/N: 1133013 - Contact
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222)730.39.68
HCM city: (028) 38.119.636
DC output:
Voltage range : 0 - 1000 V
Ripple in CV (rms) : ≤300 mV (BWL 300 kHz)
Ripple in CV (pp) : ≤1600 mV (BWL 20 MHz)
U Min for IMax (sink) : 3.4 V
Current range : 0 - 160 A
Power range : 0 - 60000 W
Resistance range : 0.2 Ω - 325 Ω
Output capacitance : 387 μF
Effi ciency sink/source (up to) : 95.8% *1
Insulation:
Negative DC pole <-> PE : ±1500 V DC
Positive DC pole <-> PE : +2000 V DC
*1 At 100% power and 100% output voltage; BWLL = band width limit
