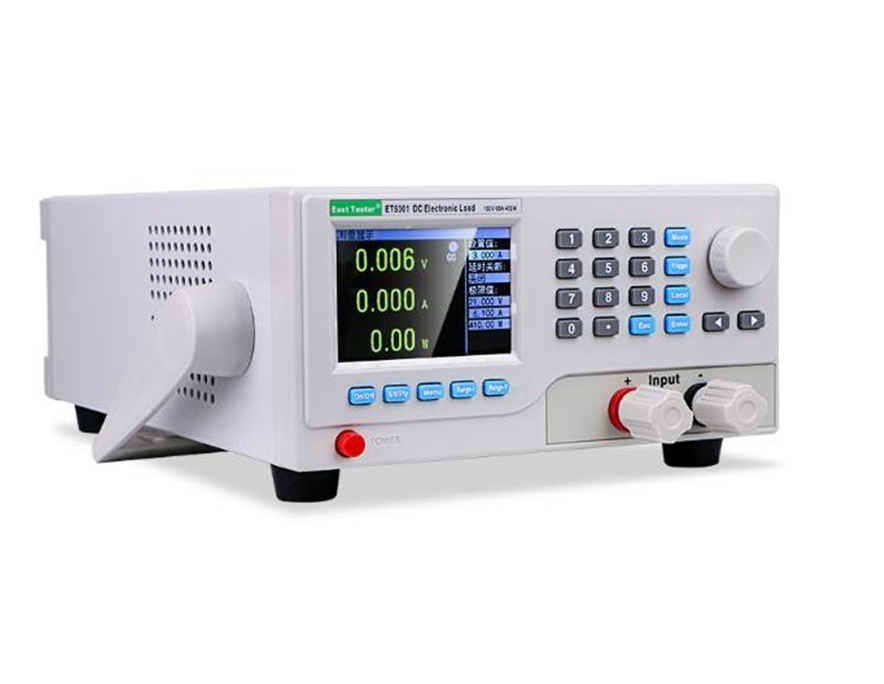

EAST TESTER ET5301 Programmable Electronic Load (400W; 0-150V; 0-60A)

Specifications

- Rated input:

+ Power: 400W

+ Input voltage: 0-150V

+ Input current: 0-60A

- Range:

+ CV mode: 0.1~19.999V,0.1~150.00V

+ CC mode: 0~6.000A; 0-60.00A

+ CR mode: 0.05Ω~1 kΩ，1 kΩ~4.5kΩ

+ CP mode: 0~400W

- Tran Test

+ Mode: CC，CV

+ T1&T2: 50ms~60s

- Battery Test:

+ Discharge mode: CC，CR

+ Maximumdischarge capacity: 9999Ah

+ Resolution: 1mA，10mA，10mΩ，100mΩ

- Range of measurement:

+ Voltageread-back value: 0~19.999V,0 ~150.00V

+ Currentread-back value: 0~6.000A,  0-60.00A

+ Powerread-back value: 400W

- Scope of protection:

+ Over Voltage Protection(OV): ＞21V OR ＞155V over voltage protection

+ Over Current Protection(OC): ＞6.1 or ＞61A over current protection

+ Over Power Protection(OP):410W

+ Over Temperature Protection: 85℃
