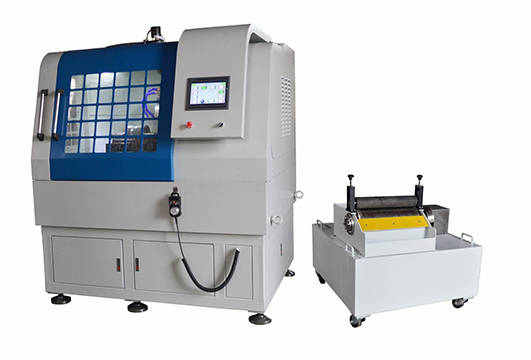

EBP CM-4 Metallographic Cutting Machine
Manufacturer: EBP Model: CM-4 Origin: China Guarantee: 12 Month - Request a Quotation
- Contact
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222)730.39.68
HCM city: (028) 38.119.636
Control Mode: Manual / Automatic, three axis linkage, 10 inch touch screen control, Can be switched to the operating handle wheel
Feature: Automatic drain system, alarm system, double LED lighting, red laser positioning
Feeding Speed: 3mm/min, 5mm/min, 8mm/min, 12mm/min (users may modify the set speed according to requirement)
Cutting Disc Size: Φ380×2.8×Φ32 mm
Work Table Dimension (X*Y): 450×350 mm
Y axis Maximum Travel Distance: 250 mm
X axis Maximum Travel Distance: 100 mm
Z axis Maximum Travel Distance: 160 mm
Max. Cutting Section: 120×100 mm
Fixture Caliber: 120 mm
Frequency Conversion Motor: 5.5kw, Rotating speed: 500-2800 r/min
Feeding Motor: Servo motor
Volume of the Water Tank: 120L
Dimensions: 1400×1000×1850mm
Weight: 1800kg
Cutting Disc Size: Φ400×3×Φ32 mm
Work Table Dimension (X*Y): 485×400 mm
Y axis Maximum Travel Distance: 300 mm
X axis Maximum Travel Distance: 100 mm
Z axis Maximum Travel Distance: 230 mm
Max. Cutting Section: 200x 120 mm
Fixture Caliber: 200 mm
Frequency Conversion Motor: 7.5kw, Rotating speed: 500-2800 r/min
Feeding Motor: Servo motor
Volume of the Water Tank: 120L
Dimensions: 1550×1100×1900mm
Weight: 2200kg
Cutting Disc Size: Φ400×3×Φ32 mm
Work Table Dimension (X*Y): 530×630 mm
Y axis Maximum Travel Distance: 420 mm
X axis Maximum Travel Distance: 110 mm
Z axis Maximum Travel Distance: 230 mm
Max. Cutting Section: 300×150 mm
Fixture Caliber: 300 mm
Frequency Conversion Motor:7.5kw, Rotating speed: 500-2800 r/min
Feeding Motor: Servo motor
Volume of the Water Tank: 120L
Dimensions: 1650×1350×1900mm
Weight: 2500kg
