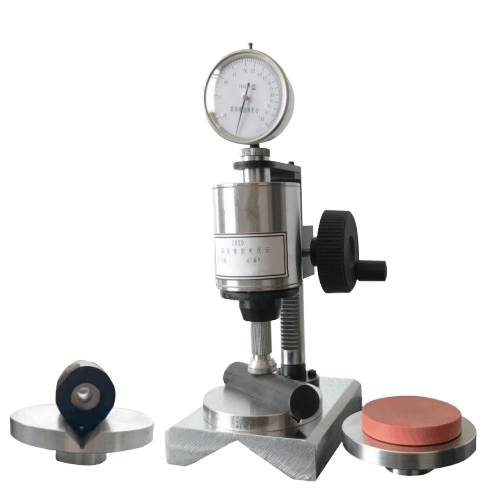

EBP IRHD-DNHL IRHD Rubber Roller Hardness Tester (N: 30-85IRHD; H: 85-100IRHD; L: 10-35IRHD)

Power: 220V 52Hz

Size: 180x150x400mm

Gross weight: 15kg

Minimum measuring diameter: 4mm

Test: Method N (Normal test)/ Method H (high-hardness test)/ Method L (low-hardness test)

Diameters (mm):

- Ball: 2.5±0.01/ 1.0±0.01/ 5.0±0.01

- Foot: 20±1

- Hole: 6±1

Force on Ball

- Contact (N): 0.30±0.02

- Indenting (N): 5.40±0.01

- Total (N): 5.70±0.03

Force on Foot (N): 8.3±1.5

Test range (IRHD): 30-85/ 85-100/ 10-35

Standard packing:

1. IRHD hardness tester: 1 set

2. Round work table (for test flat sample): 1 Piece

3. Angle V-Shape work table: 1 Piece

4. V-shape work table support frame: 1 Piece
