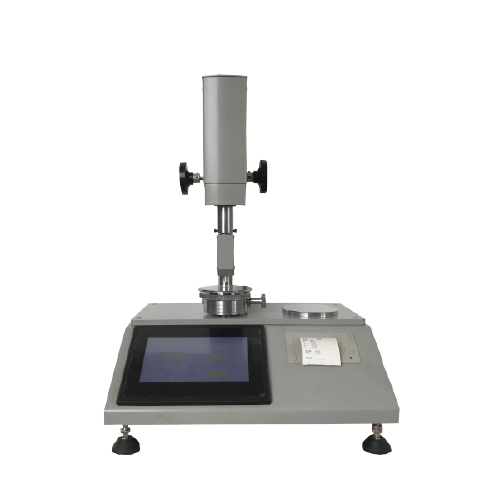

EBP IRHD-M Semi Automatic Micro IRHD Rubber Hardness Tester (0.1IRHD; 30-85IRHD)

Y Axis maximum testing range: 30mm

X Axis maximum testing range: 120mm

O-rings minimum diameter: 0.8mm

Flat test piece minimum thickness: 1mm (less than 1mm can layup)

Test accuracy: 0.1IRHD

Test: Method M (Microtest)

Diameters (mm):

- Ball: 0.395±0.005

- Foot: 3.35±0.15

- Hole: 1.00±0.15

Force on Ball

- Contact (mN): 8.3±0.5

- Indenting (mN): 145±0.5

- Total (mN): 153.3±1.0

Force on Foot (mN): 235±30

Test range (IRHD): 30-85

Dwell time (s): 30
