EBP MP-3000V Cooling Mounting Press Machine (φ30mm)

Mould size: φ30mm silicon mould, Optional 40, 50mm

Vacuum pump:

Max vacuum degree: -0.1Mpa

Pumping rate: 7.2 m³/h

Input voltage and power: Single phase 220V, 50/60Hz 370w

Dimension (L x W x H):

Vacuum container: 300 x 300 x 300 mm

Vacuum pump: 340 x 130 x 270 mm

Maximum Quantity of samples: > 10 pieces (φ30mm)

Weight

Vacuum container: 1.15kg

Vacuum pump: 11.5kg

Standard accessories：

Vacuum pump（with vacuum meter）: 1

100ml measuring glass: 1

Vacuum container: 1

CM4 cold mounting resin, Resin 200ML + curing agent60ml: 1

Connecting pipe: 1

Manual: 1

Mould (φ30mm silicon mould):3

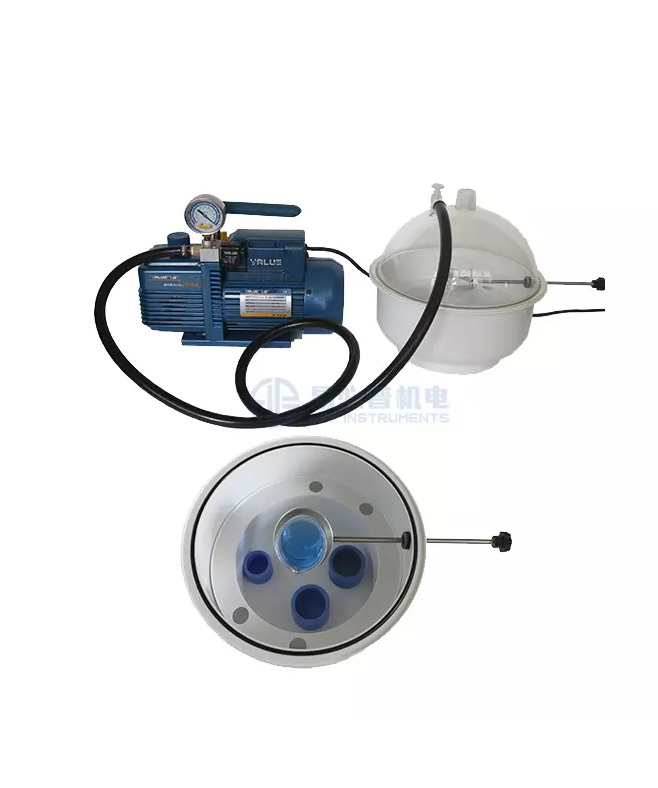

MP-3000V can exclude the air contained in the sample. Without the presence of air, the embedded compound would fill the sample's gap, eliminating the gap between the sample and the compound. Therefore, edge retention is strengthened and fragile samples are well supported during grinding and polishing.

A sturdy vacuum pump provides enough vacuum to quickly remove any air in a porous sample. With the unique rotating cup holder in the vacuum container, multiple samples can be soaked in vacuum at the same time.

A unique casting mechanism is designed so that the embedded compound can be placed in the cavity and poured into the mold at one time. Can be applied to various epoxy resin and polyester castable inlay (cold) compounds. Since the sample is encapsulated in a vacuum, the possibility of air entering is completely eliminated.
