Applications
Soil profile description and classification
Soil sampling above groundwater table
Soil sampling below groundwater table
Environmental soil research
Sediment sampling
The peat sampler enables to take undisturbed samples from soft soils at predetermined depths on behalf of:
Environmental studies
Visual interpretation of a soil layer
Soft sediment sampling
Palaeontological research
Specifications
Connection: Screw thread
Maximum sample depth: 10 m
Product material: Stainless steel, iron, other material
Sample diameter: 52 mm
Sample length: 50 cm
Sample specification: Semi-disturbed
Sample volume: 530 ml
Sampler position: Vertical
Package size: 117 x 27 x 23 cm
Weight: 32 kg
Description
The stainless steel peat sampler is pushed into the soil by hand. Half a cylinder is used to contain the obtained sample. The cone of the peat sampler is massive, distinguishing it from the standard gouge auger.
The sample containing section is sealed off by a plate (fin) that can pivot around the axle in the middle of the sampler and that is fitted with a cutting edge on one side. Having arrived at the correct sampling depth the complete sampler is given half a turn clockwise (180°). During the turning the fin remains in position, which allows the half cylinder to be filled and closed again. The half circular sample cylinder is kept closed by the other side of the fin during extraction.
The peat sampler can only be used in flabby and very soft soils. To achieve maximum stability the connections between the T-handle, the extension rods and the bottom part are conic threaded connections. Please note that due to the thick tip, limited penetration into stiff material is possible and water plant roots will be pushed aside.

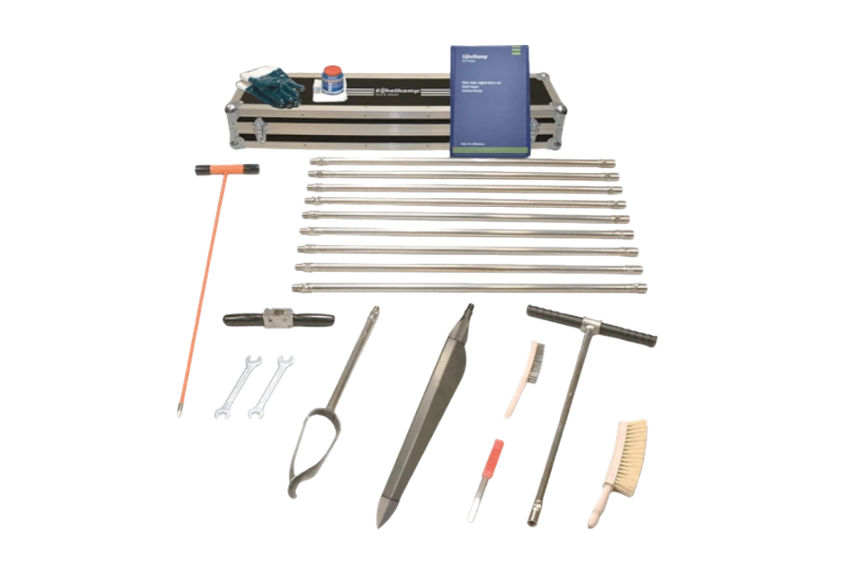

Set contains
Edelman auger
Peat sampler
Push-/pull handle
Tools
Maintenance kit
Fibre glass utility probe
The whole is kept in a sturdy aluminium transport case
Datasheet
