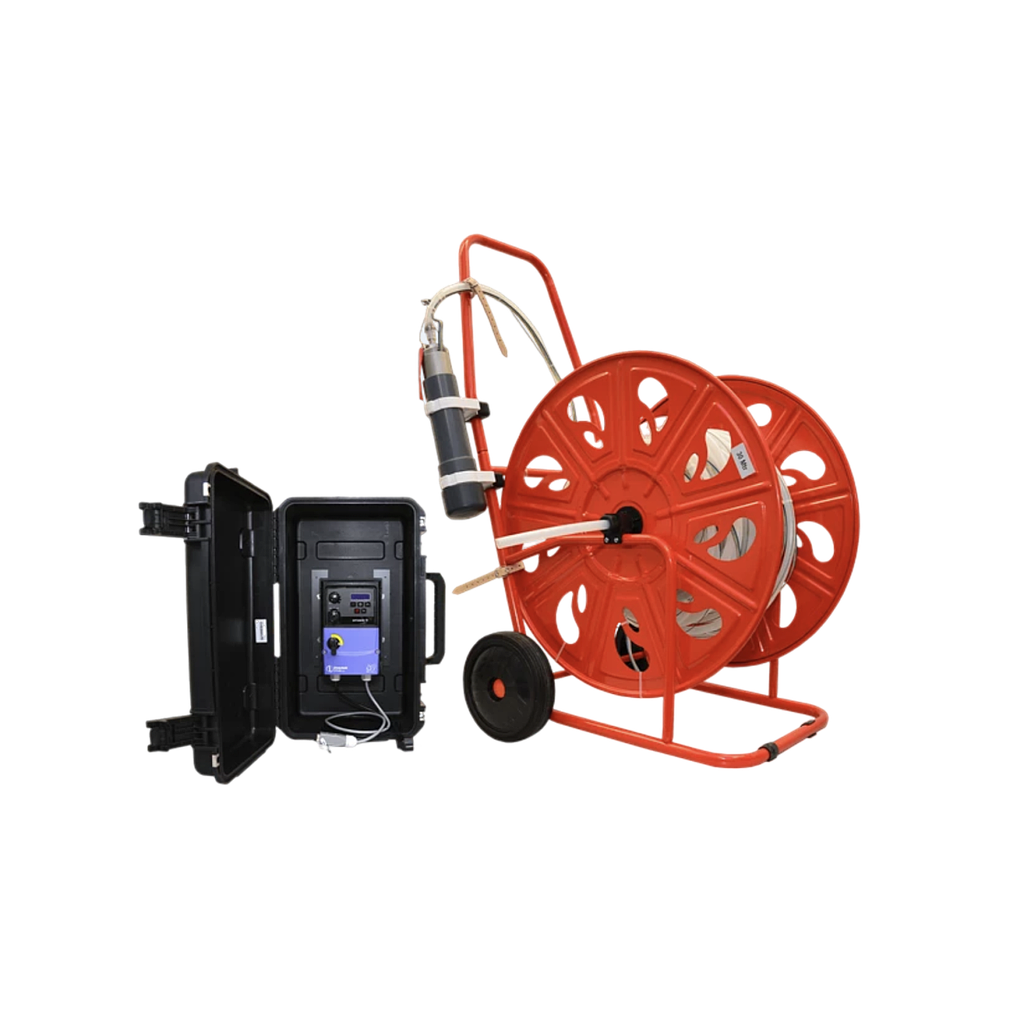

Eijkelkamp 12.27 MP 1 submersible pump (không có ống)

Name: Eijkelkamp 12.27 MP 1 submersible pump (không có ống)
Brand: Eijkelkamp

ManufacturerEijkelkamp(View more products from this manufacturer)

Model12.27

P/N1227

Contact

Quantity

Secure Checkout

Quality Engagement

Easy change and return

Delivery Available

MP 1 submersible pump No tube

Power input: 1.3kW

Voltage: 3 x 220 V 400 Hz

Maximum current: 5.5 A

Motor protection: Built-in thermal switch

Water temperature: 0 °C to +35 °C

Discharge port: Rp 3/4

Continuous operation: 500 hours

Package size: 120 x 80 x 100 cm | 47.2 x 31.4 x 39.3 inch

Applications

Anaerobe sampling

Purging and sampling of monitoring wells

Maximum lift of 90 metres of water

Description

The MP 1 / Redi-Flo2 submersible pump is specially designed for purging and sampling of monitoring wells. Originally designed by Grundfos, Royal Eijkelkamp is now exclusive manufacturer of this unique groundwater pump. It’s the only pump in the world which can lift water up to 90 m above water level within a well with a diameter as small as 50 mm (2 inch)! This pump can be delivered with a re-usable PTFE tube, a low-cost LDPE tube, or no tube. The high capacity of this pump allows for quick purging of the measuring point. By setting a low pumping capacity the same pump can be used for sampling. The pump housing is completely made of stainless steel, which helps prevent contamination of the sample. The pump motor is controlled by an adjustable frequency converter. Thanks to the variable setting of the frequency, the capacity of the pump can be adjusted from 0 to 2m3 /hour. This results in a steady flow of anaerobe water.Every measurement point must be purged before samples can be taken. The large capacity of the MP 1 pump ensures that the measuring point is quickly purged. By setting it at a lower pumping capacity, the MP 1 can also be used for sampling.Built-in safeguards protect the MP 1 and the converter against overload. The actual frequency can be read from a display.

Available variants

12.27.SF PTFE tube, 30 metres

12.27.SG PTFE tube, 60 metres

12.27.SH PTFE tube, 90 metres

12.27.SL LDPE tube, 30 metres

12.27.SM LDPE tube, 60 metres

12.27.SN LDPE tube, 90 metres

No tube

Set contents

The set is delivered fully assembled and contains:

Submersible pump MP 1

Cooling jacket
