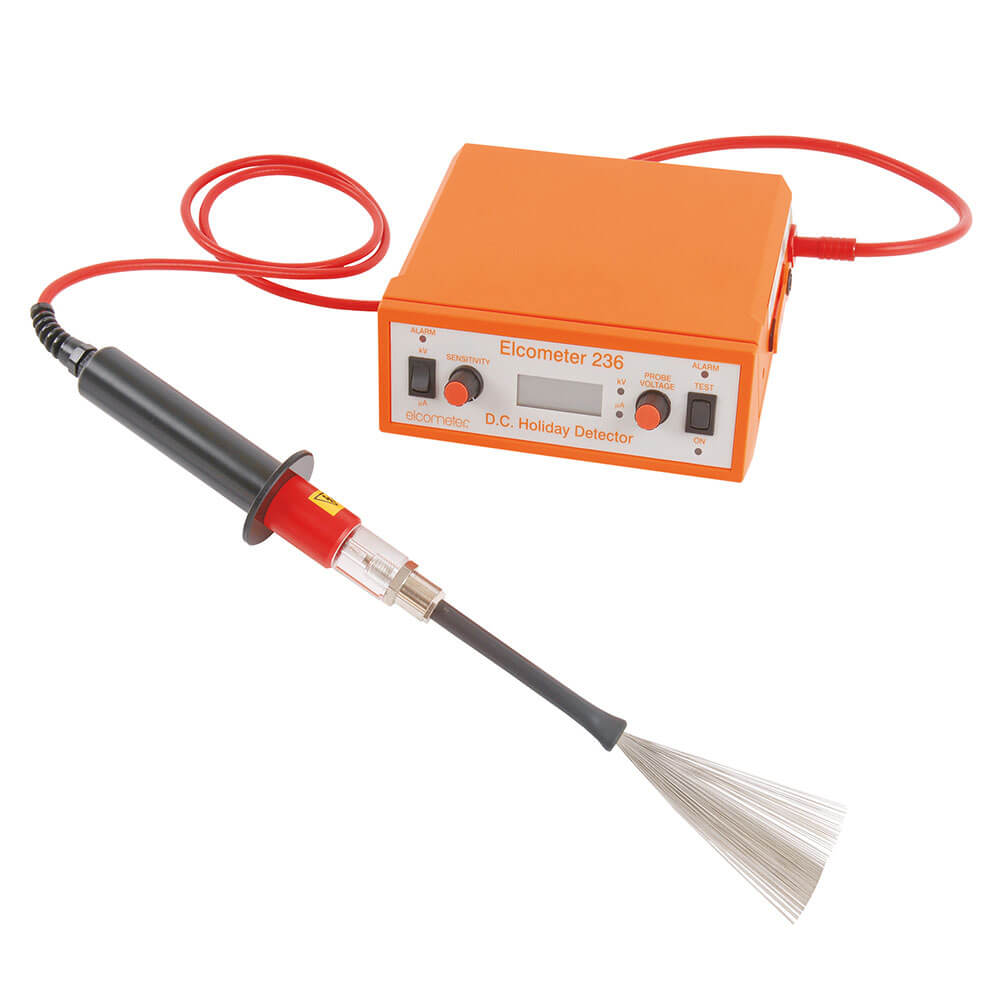

ELCOMETER 236 DC Holiday Detector (0~7.5mm)

Voltage Output:0.5 - 30kV in 100V steps

Display Resolution: 0.1kV

Approximate Thickness Range: 0 - 7.5mm (0 - 300mils)

Operating Temperature:0°C to 50°C (32°F to 120°F)

Alarm:Audible & Visual

Power Supply: NiMH 12V internal rechargeable battery

Battery Life (approximate): 10/12 hours continuous use, 20/24 hours with the optional external battery pack

Dimensions: 200 x 170 x 70mm (6 x 7 x 3”)

Weight: 2.8kg (6lb 3oz)

Packing List: Elcometer 236, probe handle and lead, band brush probe, 2m (79”) & 10m (394”) signal return/earth leads, battery charger with 3 mains cables (UK, EUR and US), carry case, transit case and operating instructions

c/w CALIBRATION CERTIFICATE
